Description
Parameters and specifications:

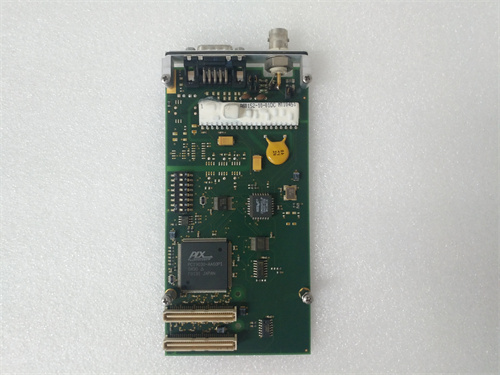

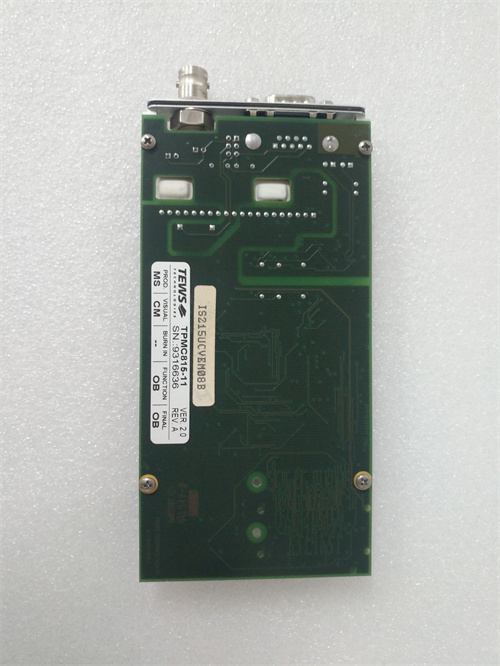

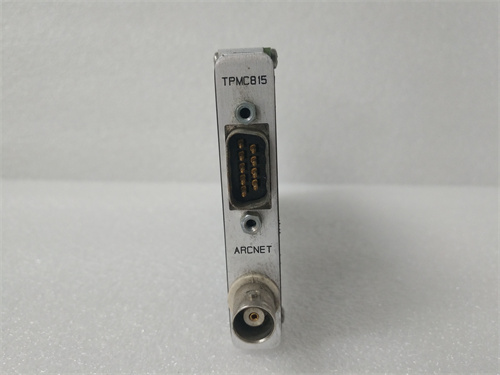

Model: TPMC815-11
Interface type: ARCNET
Interface speed: 2.5 Mbps
Node address: Configurable
Bus topology: Supports star, bus, or ring
Power supply voltage: 5 V DC
Power consumption: Max. 5 W
Operating temperature range: -40°C to 85°C
Storage temperature range: -55°C to 125°C
Humidity: 5% to 95% (non-condensing)
Protection level: IP67
Size and weight:
Dimensions: 114 mm x 75 mm x 25 mm
Weight: 0.2kg
Series:
TPMC815-11 belongs to the TPMC800 series PMC module.
Features:
Supports standard ARCNET protocol
A configurable node address
Supports star, bus, and ring bus topologies
High-speed 2.5Mbps data transfer rate
250 V RMS isolation voltage
50 dB common mode rejection
Rugged design to withstand harsh environmental conditions
Easy to install and maintain
May support a variety of communication interfaces, such as Ethernet, serial communication, Modbus, Profibus, etc
Data conversion capabilities may be available to convert data in different formats and standards
Industrial design, high temperature resistance, vibration resistance, anti-interference and other characteristics
It may have some degree of programmability, allowing users to configure and customize as needed
Remote access and monitoring may be supported
Functions:
The role of the TPMC815-11 ARCNET interface module is to provide reliable, high-speed data transmission in industrial automation, building automation and automotive applications. It is often designed to connect and communicate different devices and components in industrial control systems.
