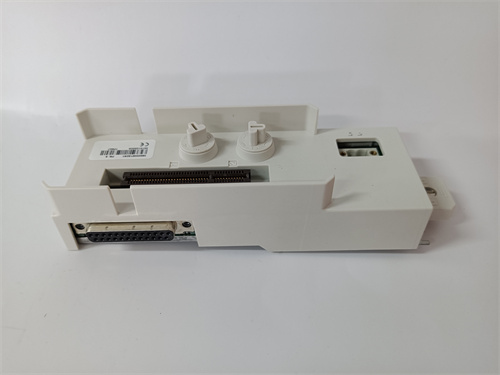

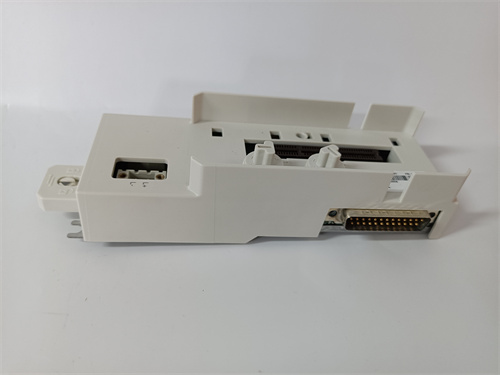

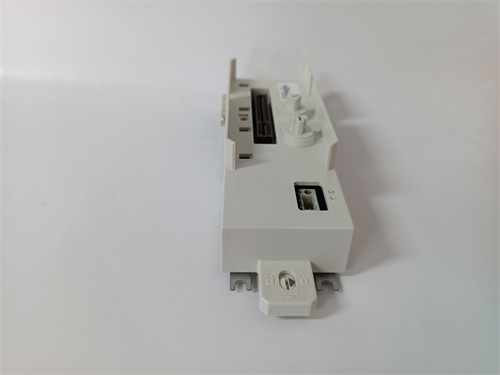

TP857 3BSE030192R1

Description

Parameter Specifications

1. Power Supply: The TP857 3BSE030192R1 typically operates on a 24V DC power supply, with a power consumption of around 15 – 20W. This ensures stable and efficient operation in industrial settings.
2. Processor: It is equipped with a high – performance processor capable of handling complex control algorithms. The processor speed is optimized to provide rapid data processing and real – time response for industrial control tasks.
3. Memory: It has 512MB of RAM for smooth operation of control programs and 1GB of flash memory to store system software, configuration files, and historical data.
4. I/O Channels: It features a comprehensive set of input/output channels. There are multiple digital input channels for receiving signals from sensors such as limit switches and proximity sensors, and digital output channels for controlling actuators like solenoid valves and relays. Additionally, it may have analog input and output channels for handling continuous signals such as temperature and pressure.
5. Communication Interfaces: It offers various communication interfaces, including Ethernet for high – speed data transfer, serial ports (RS – 232/RS – 485) for legacy device connections, and support for industrial protocols like Modbus TCP and Profibus DP.

Applications

1. Industrial Automation: In manufacturing plants, it can be used to control and monitor production lines. For example, it can manage the operation of robotic arms, conveyor belts, and assembly machines, ensuring efficient and accurate production processes.
2. Process Control: In chemical and pharmaceutical industries, it can be employed to control and regulate chemical reactions, monitor process parameters such as temperature, pressure, and flow rate, and ensure product quality and safety.
3. Power Generation: In power plants, it can be used to control and monitor power – generating equipment such as turbines and generators, and manage the distribution of electrical power.

Weight and Dimensions

1. Weight: Approximately 2 – 3 kg, which is relatively light and easy to handle during installation and maintenance.
2. Dimensions: It has a compact design, with dimensions of about 200mm (length) x 150mm (width) x 60mm (height), allowing it to be easily installed in standard control cabinets.

Features

1. Flexible Configuration: It can be easily configured and programmed according to different application requirements. Users can customize input/output settings, communication protocols, and control logic using programming languages like ladder logic or function block diagram.
2. High – speed Data Processing: With its powerful processor and sufficient memory, it can process large amounts of data in real – time, enabling quick response to changes in the industrial environment.
3. Remote Monitoring and Control: It supports remote access via Ethernet, allowing operators to monitor and control the device from a central control room or even from a remote location, improving operational efficiency.

Stability and Reliability

1. Robust Design: Built with high – quality components and a sturdy enclosure, it can withstand harsh industrial environments, including high temperatures, humidity, and vibrations.
2. Redundancy Options: Some versions may offer redundancy features in power supply and communication, ensuring continuous operation even in the event of a single – point failure.
3. Long – term Testing: Through extensive long – term testing and quality control, it has been proven to have a high level of stability and reliability over a long service life.
