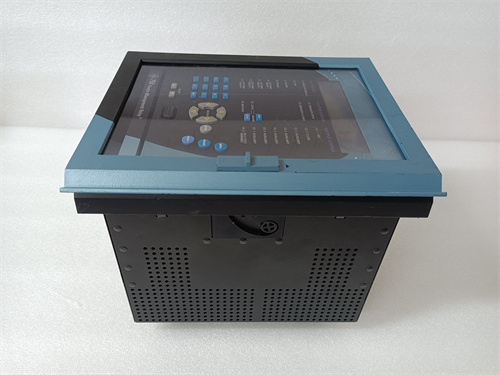

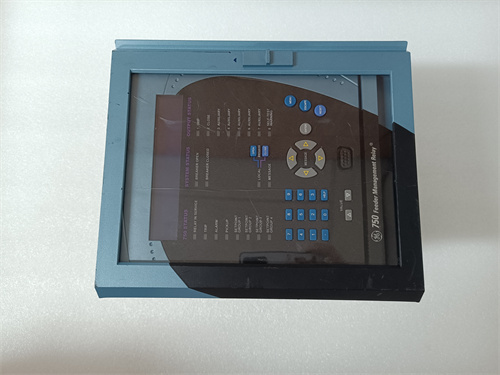

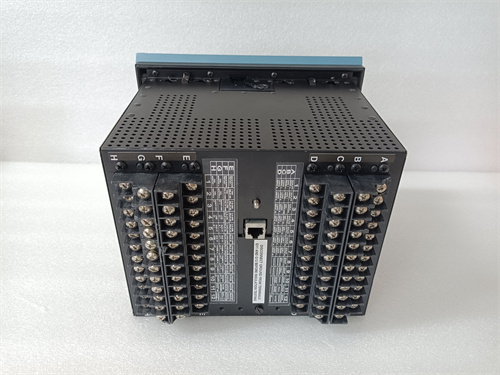

SR750-P5-G5-S5-HI-A20-R-T

Description

‌Parameters and Specifications‌:

Model: SR750-P5-G5-S5-HI-A20-R-T
Brand: GE (General Electric)
Phase Current Input: 750A
Zero-Sequence Current Input: 5A
Sensitive Earth Current Input: 5A
Rated Control Power: 88-300 VDC or 70-265 VAC @ 48-62 Hz
Analog Outputs: 4 x 20mA
‌Dimensions and Weight‌:

Dimensions: Not specifically provided, but typical for industrial relays.
Weight: Approximately 6.3kg (as per one source).
‌Series‌:

Belongs to GE’s 750 series of feedline management relays.
‌Features‌:

Programmable setpoint menu navigation via keyboard.
Direct access to metering, status, maintenance, trip counters, arc current, and other settings.
Hardware and password security to prevent unauthorized changes.
Capable of defining protection elements, collecting system data, and configuring output contacts, circuit breaker closure, and monitoring.
Additional monitoring functions such as delay, breaker timing, alarm and trip values, and minimum/maximum values.
‌Functions‌:

Used for feedline management and protection in electrical systems.
Monitors and manages various electrical parameters to ensure system stability and efficiency.
Provides protection against overvoltage, undervoltage, overfrequency, underfrequency, and other faults.
Communicates with other devices and systems via appropriate interfaces for integrated system monitoring and control.
