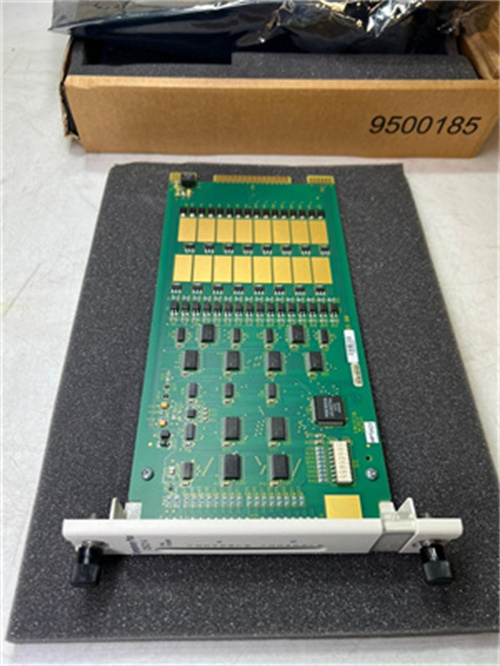

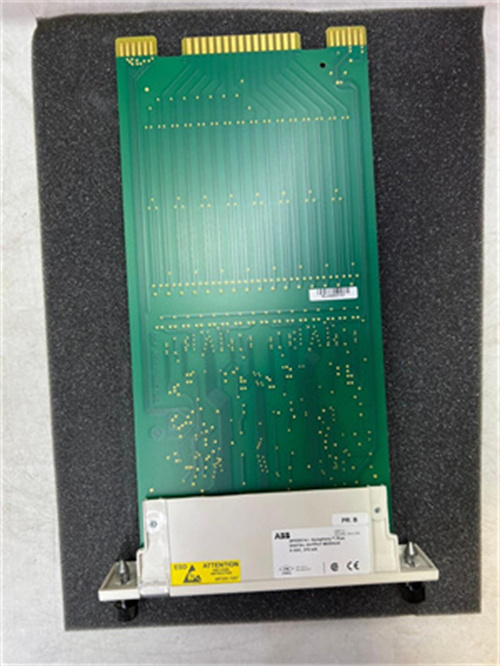

SPDSO14

Description

Parameters and specifications
Model: SPDSO14
Number of channels: Supports 16 digital output channels (DO)
Type: As an analog output module, it can output a variety of analog signals, such as voltage, current, etc
Communication mode: Communicate with the controller through the ASI module to realize the transmission of input and output data
Size and weight
Product net depth/length: 73.66mm
Product height: 360.68mm
Product width: 279.4mm
Net product weight: 0.1KG (some information indicates 0 kg, but a more specific 0.1KG is provided here)
series
Series: SPDSO14 is a series of digital output modules produced by ABB
trait
Hardware compatibility: Mainly used to configure the hardware of the onsite control unit, such as configuring plug-ins (such as host plug-ins, power plug-ins, I/O plug-ins, and communication plug-ins), hardware redundancy configuration, and hardware installation
Communication interface: Provides the path between the controller and the I/O module, and communicates with the controller through the ASI module
Digital output type: with open collector type
Input/output status: The input register reflects the status of the input signal, and the output point reflects the status of the output latch
effect
Application scenario: The SPDSO14 digital output module is commonly used in industrial automation control systems, such as the Symphony Plus I/O HR series (Harmony Rack). It can be used as part of a subsystem within the Harmony Control Unit (HCU) to work with the control subsystem and other I/O subsystems
