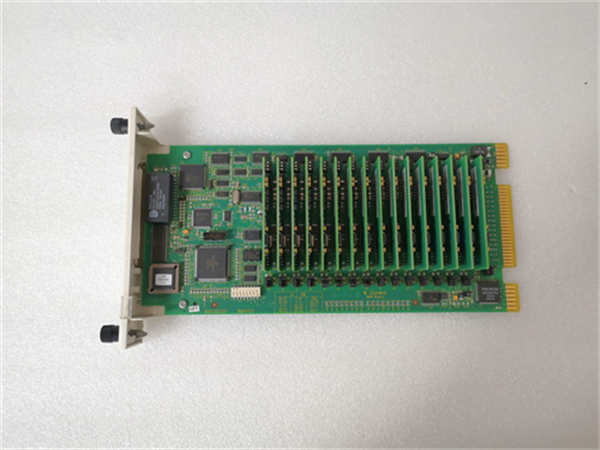

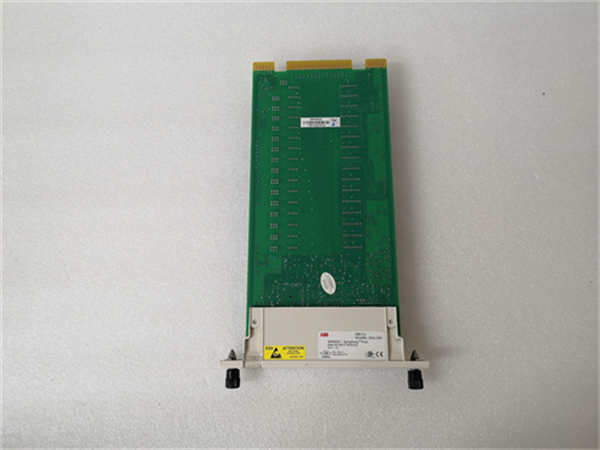

SPASI23

Description

1.‌Parameters and Specifications‌:
–‌Power Supply‌: Depending on the configuration, it can support AC 50V-80V, DC 70-110V, or 24VDC12.
–‌Maximum Continuous Current‌: 5A (with potential peak output of 10A)1.
–‌Control Interface‌: CAN 2.0B for speed and position control1.
–‌Feedback Element‌: Incremental encoder with four-times frequency decoding1.

2.‌Dimensions and Weight‌:
–‌Dimensions‌:
– 150mm x 97.5mm x 53mm (for a servo drive version)1
– 7.37cm x 27.18cm x 35.81cm (for an analog input module)3
–‌Weight‌:
– Approximately 0.7kg for servo drive1
– 0.77kg for analog input module

4.‌Features‌:
–‌High-Speed Control‌: Supports PWM switch frequencies above 50KHz, ideal for controlling low-inductance hollow cup motors1.
–‌Versatile Communication‌: Equipped with CAN 2.0B interface for speed and position control, as well as PC control and parameter adjustment1.
–‌Protective Functions‌: Includes overcurrent, overload, overvoltage, undervoltage, and loss-of-control protection1.
–‌Feedback System‌: Uses an incremental encoder with four-times frequency decoding for precise position feedback1.
–‌Easy Integration‌: Supports CAN bus networking, facilitating integration into larger automation systems1.

5.‌Functions‌:
–‌Servo Drive‌: In its servo drive configuration, it drives permanent magnet DC servo motors, hollow cup DC servo motors, and torque motors1.
–‌Analog Input‌: As an analog input module, it converts analog signals into digital signals for processing by PLCs or other controllers
