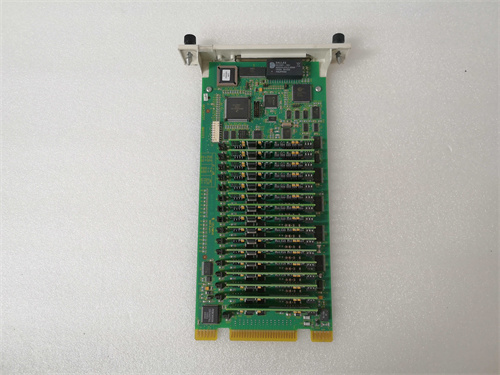

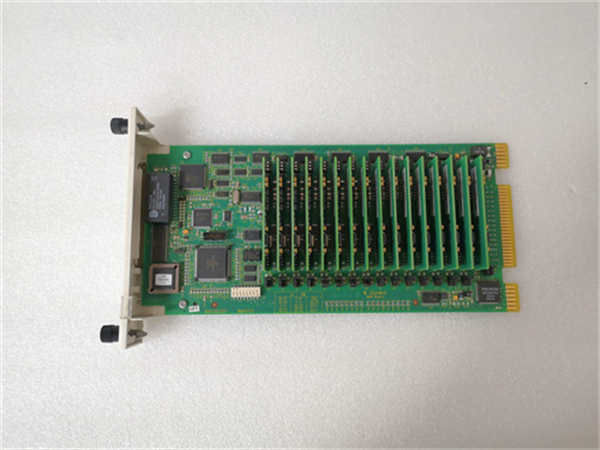

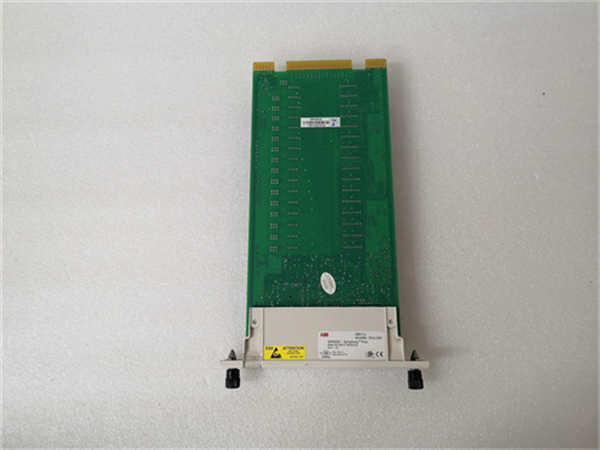

SPASI23

Description

Parameter Specifications

Input Type: Universal (voltage, current or thermocouple).
Input Range: Voltage: ±10 V, ±5 V, 0-10 V, 0-5 V; Current: ±20 mA, 4-20 mA; Thermocouple: J, K, T, E, R, S, B.
Resolution: 16 bits.
Accuracy: ±0.1% of full scale.
Sampling Rate: Up to 100 Hz.
Isolation: 250 V AC.
Power Supply: 24 V DC.

Applications

Industrial Automation: It is used to collect and monitor analog signals from sensors like temperature, pressure and flow in industrial production lines, providing data support for process control.
Power Monitoring: In power plants and substations, it monitors analog parameters such as voltage and current to ensure the safe and stable operation of the power system.
Building Automation: Monitors environmental parameters like temperature and humidity in buildings and is used in air conditioning systems and lighting control systems.

Weight and Dimensions

Weight: There is no clear and consistent data, with some sources saying 0.42 kg – 0.771 kg.
Dimensions: 144 mm x 127 mm x 25 mm (5.67 inches x 5 inches x 1 inch).
Features
Multifunctional Input: Supports various types of analog input signals, which is convenient for connecting different sensors.
High Resolution: 16 – bit resolution enables accurate measurement of input signal changes.
Easy Configuration: It can be easily configured through software to meet different application requirements.
Good Compatibility: Designed for ABB’s Symphony Plus control system and can be well integrated with other system components.

Stability and Reliability

High – Quality Components: Manufactured with high – quality electronic components and materials, which can withstand harsh industrial environments.
Electrical Isolation: The 250 V AC isolation design can effectively prevent electrical interference and ensure the stability of signal transmission.
Strict Testing: ABB’s strict quality control system ensures that the module has passed strict testing and verification before leaving the factory.

Practical Case

In a chemical plant, the SPASI23 is used to monitor the temperature and pressure of reactors. It accurately collects analog signals from temperature and pressure sensors and transmits them to the central control system. Once, when a reactor’s temperature suddenly rose abnormally, the SPASI23 quickly detected the change and sent an accurate signal to the control system. The control system promptly took measures to adjust the cooling system, preventing a potential accident and ensuring the safe operation of the production process.
