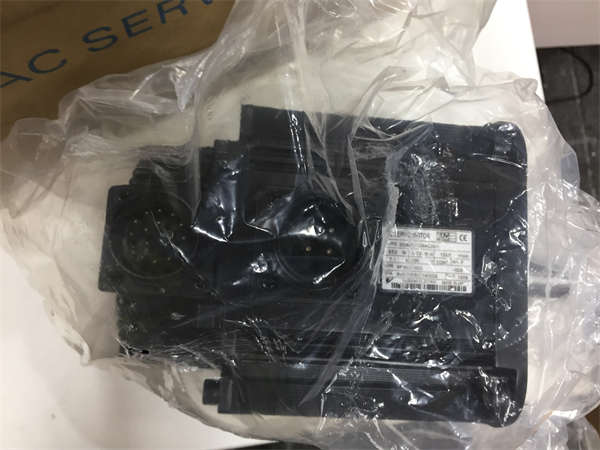

SGMGH-13DCA6C

Description

Parameters and specifications
Make and Model: Yaskawa SGMGH-13DCA6C model.
Rated output: 7.0kw.
Supply voltage: ac200v.
Serial encoder: 20-bit pair type (standard).
Shaft end: straight shaft, with keyway, with screw hole (optional).
Optional: With holding brake (dc24v).
Rated time: continuous.
Vibration level: V15.
Insulation resistance: dc500v, more than 10mΩ.
Ambient temperature: 0 ~ 40°C.
Excitation mode: permanent magnet.
Installation mode: Flange type.
Heat resistance rating: F.
Edge voltage: ac1500v 1 minute (200v class), ac1800v 1 minute (400v class).
Protection mode: fully enclosed self-cooling IP67 (except shaft through part).
Ambient humidity: 20 ~ 80% (no condensation).
Connection mode: Direct connection.
Rotation direction: Clockwise (CCW) rotation when viewed from the load side under the forward rotation command.
series
Series: SGMGH series, this is a large servo motor series, can carry greater load, mainly used in printing presses, packaging machines, injection molding machines and other need low speed, high torque equipment.
trait
High power rate of change: helps to achieve high efficiency of the device.
High resolution serial encoder: Equipped with 20 bit high resolution serial encoder, providing high precision control.
Protection grade: Standard IP67 (7.0kw for IP22), providing excellent dustproof and waterproof performance.
Widely used: suitable for a variety of mechanical equipment and factory environment, such as SMT machine, printed circuit board punching machine, machine feed device, etc.
effect
Power and control: As a servo motor, the SGMGH-13DCA6C is mainly used to provide precise power and control to meet the needs of various industrial applications, such as printing, packaging, injection molding, etc., where high precision, high torque and low speed operation are required.
