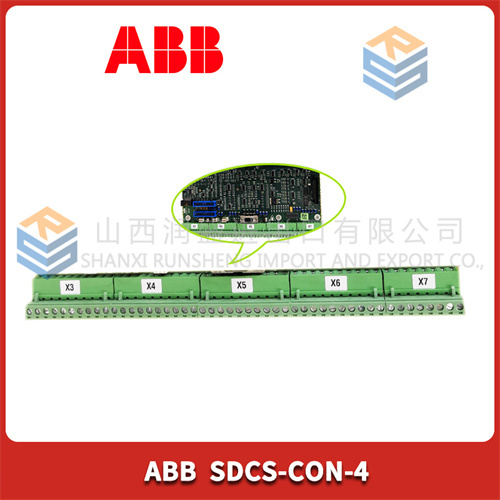

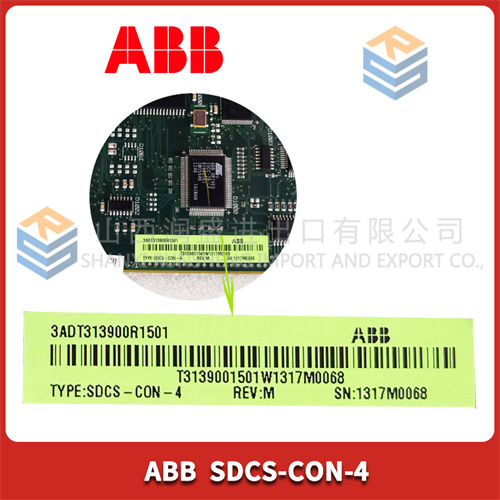

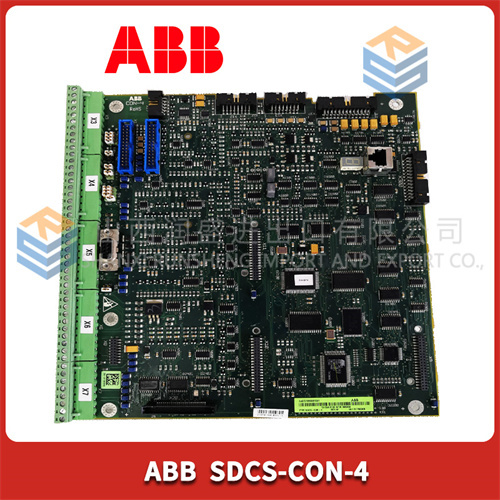

SDCS-CON-4

¥4,650.00

Applications



  1. Industrial Automation: In manufacturing plants, the SDCS – CON – 4 can be used to control and monitor simple production processes. For example, it can control the movement of a small – scale conveyor system based on the signals from sensors detecting the presence of products.
  2. Building Automation: In commercial buildings, it can be used for basic control tasks such as controlling the lighting system according to the occupancy detected by sensors, or monitoring and controlling the ventilation system.
  3. Agricultural Automation: In greenhouses, it can be used to monitor environmental parameters such as temperature and humidity through connected sensors and control ventilation fans or heaters accordingly.

Weight and Dimensions



  1. Weight: Approximately 0.4 kg, which is relatively light and easy to handle during installation and maintenance.
  2. Dimensions: It has a compact design, with dimensions of about 110mm (length) x 90mm (width) x 35mm (height). This small size allows it to be easily installed in control boxes or other limited – space areas.
Category: Tag:

Description

Parameter Specifications



  1. Power Supply: The SDCS – CON – 4 operates on a 24V DC power supply, with a power consumption of approximately 15 – 20W. This relatively low power requirement makes it energy – efficient for continuous operation in industrial settings.
  2. Input/Output Channels: It features 4 digital input channels and 4 digital output channels. The digital input channels can receive signals from sensors such as limit switches, proximity sensors, or photoelectric sensors. The digital output channels are capable of controlling actuators like solenoid valves, relays, or indicator lights.
  3. Communication Interface: It is equipped with an Ethernet communication interface, supporting a data transfer rate of up to 100Mbps. It adheres to the Modbus TCP protocol, enabling seamless integration with other devices in an industrial network for data exchange and remote monitoring.
  4. Operating Temperature Range: Designed to function within a temperature range of – 10°C to 50°C. This allows it to be used in various industrial environments, including those with some temperature variations.

Applications



  1. Industrial Automation: In manufacturing plants, the SDCS – CON – 4 can be used to control and monitor simple production processes. For example, it can control the movement of a small – scale conveyor system based on the signals from sensors detecting the presence of products.
  2. Building Automation: In commercial buildings, it can be used for basic control tasks such as controlling the lighting system according to the occupancy detected by sensors, or monitoring and controlling the ventilation system.
  3. Agricultural Automation: In greenhouses, it can be used to monitor environmental parameters such as temperature and humidity through connected sensors and control ventilation fans or heaters accordingly.

Weight and Dimensions



  1. Weight: Approximately 0.4 kg, which is relatively light and easy to handle during installation and maintenance.
  2. Dimensions: It has a compact design, with dimensions of about 110mm (length) x 90mm (width) x 35mm (height). This small size allows it to be easily installed in control boxes or other limited – space areas.

Features



  1. Ethernet Connectivity: The Ethernet communication interface enables fast and reliable data transfer, facilitating real – time control and monitoring. It also allows for easy connection to a central control system or a network for remote access.
  2. Easy Configuration: Configuration is straightforward. Users can set up input/output functions, communication parameters, and other settings through software or a user – friendly interface, reducing the complexity of installation and operation.
  3. Cost – Effective: It offers a cost – effective solution for basic automation and control tasks, especially for small – scale applications where high – end features are not necessary.

Stability and Reliability



  1. Robust Construction: Built with high – quality components and a durable enclosure, it can withstand normal industrial vibrations, minor shocks, and dust.
  2. Electrical Isolation: It provides electrical isolation between input/output channels and the power supply, protecting the device from electrical interference and ensuring stable signal transmission.
  3. Long – term Testing: Through long – term testing, it has been proven to have a reliable performance over time, with a low failure rate.

Practical Case



In a small – scale bakery, the SDCS – CON – 4 is used to control the conveyor system that moves bread trays through the oven. The digital input channels are connected to sensors that detect the presence of bread trays at the entrance and exit of the oven. When a tray is detected at the entrance, the SDCS – CON – 4 sends a signal through the digital output channel to start the conveyor. Once the tray reaches the exit, the sensor sends a signal to the input channel, and the SDCS – CON – 4 stops the conveyor. One day, there was a brief power surge in the bakery. Thanks to the electrical isolation feature of the SDCS – CON – 4, the device continued to operate normally, and the bread – baking process was not interrupted. The cost – effective and reliable performance of the SDCS – CON – 4 ensured the smooth operation of the bakery’s production line.
