Description
Parameters & Specifications:
Brand: NI

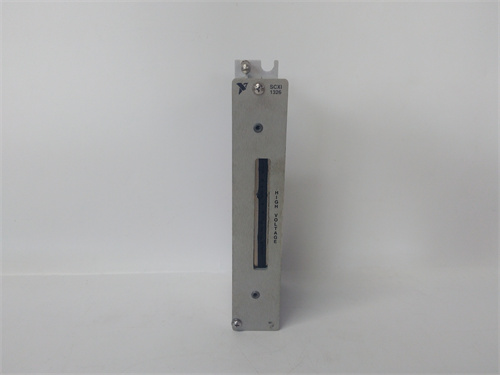

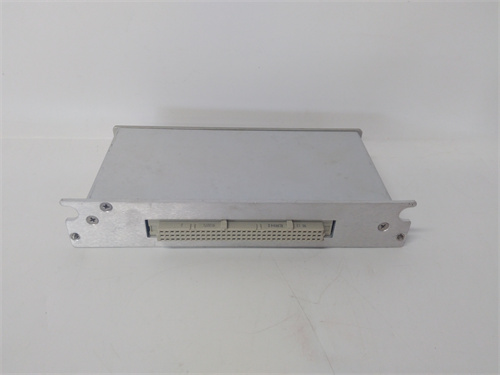

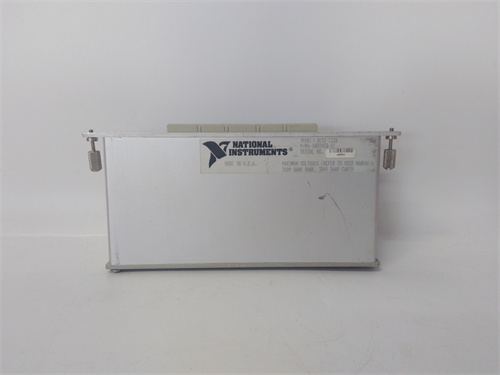

Model: SCXI-1326
Function: Control Pulse Module / Signal Acquisition Module
Channels: Multiple channels for simultaneous signal generation or acquisition
Output Type: Digital pulses (configurable based on application needs)
Sampling Rate & Resolution: Depends on the selected NI data acquisition hardware and settings
Frequency Range: Supports a variety of pulse frequencies to suit different applications
Pulse Width Control: Allows for precise control of pulse width
Trigger Modes: Supports different trigger modes, such as single trigger, repeated trigger, etc.
Dimensions & Weight:
Dimensions: 28*74*55 (packaging size, unit not specified, likely mm)
Weight: 6.5 (unit not specified, likely kg or similar)
Series:
Part of the NI SCXI series, known for its modular design and ease of configuration and expansion
Features:
Modular Design: Facilitates easy configuration and expansion based on user needs
Communication Interfaces: May include USB, Ethernet, or other interfaces for data communication and control
Signal Conditioning: Equipped with signal conditioning circuits for accurate signal acquisition and processing
Adapters & Connectors: Provided to ensure stable and reliable signal connections
Environmental Adaptability: Suitable for various environmental conditions, such as temperature and humidity
Applications:
Control Pulse Generation: Used to generate control pulses for triggering or controlling other devices or systems
Signal Acquisition: Ideal for acquiring analog signals such as voltage, current, temperature, etc., for data acquisition, analysis, and control
Wide Range of Uses: Suitable for test, measurement, control system triggering, and other applications requiring precise signal generation or acquisition
