Description
Parameters and specifications:
Communication capability: Each block has its own communication capability and microprocessor.
Circuit connections: 6 to 32 circuits are provided to connect input and output devices.
Voltage measurement range: Each SCXI-1313A channel features an accurate 100:1 resistive voltage divider that can be used to measure voltages up to 150 Vrms or ±150 VDC.
Size and weight:
Dimensions: Approximately 22.5 x 10 x 7.5 cm (9 x 4 x 3 inches).
Weight: About 1.8 kg (4 lb).
Series:
SCXI-1313A is one of the data acquisition modules in the NI (National Instruments) series.
Features:

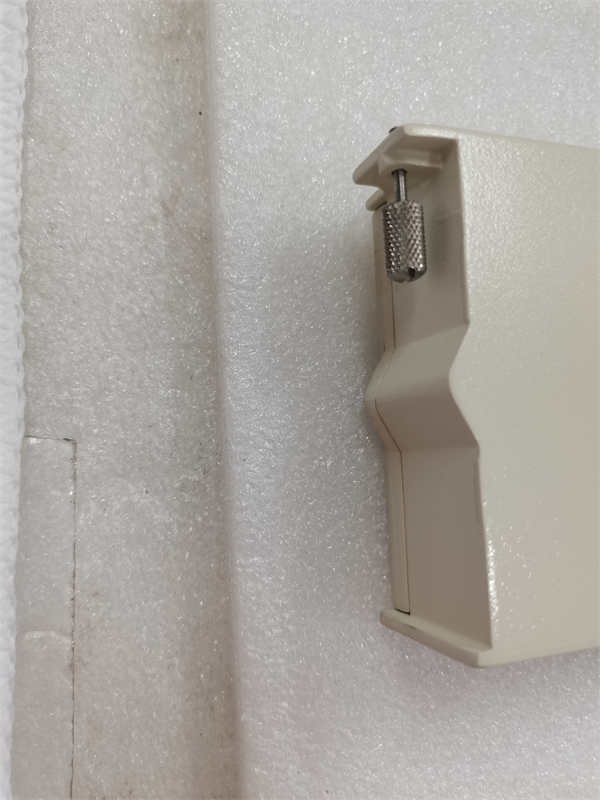

Shielding design: The SCXI-1313A terminal block has a shielding design to help reduce electromagnetic interference.
Screw terminals: Provides screw terminals for easy signal connection, with a total of 18 screw terminals, one pair of which is connected to the SCXI-1125 chassis and the remaining eight pairs of which are connected to the signal to eight analog inputs.
Voltage dividers: Each channel is equipped with voltage dividers that can be individually bypassed as required for low-voltage measurement applications.
Metal material: Made of cast aluminum, providing a certain degree of durability and stability.
Functions:
Data acquisition: As a data acquisition module, the SCXI-1313A is primarily used to collect data from field devices, such as sensors and actuators, and convert it into a format that can be used for further processing or analysis.
Industrial automation: In industrial automation systems, SCXI-1313A can be used as a bridge between field equipment and control systems to achieve real-time data transmission and monitoring.
