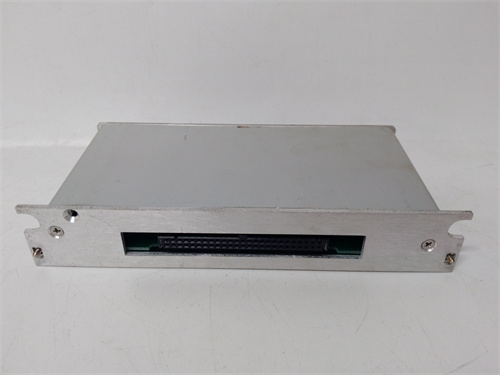

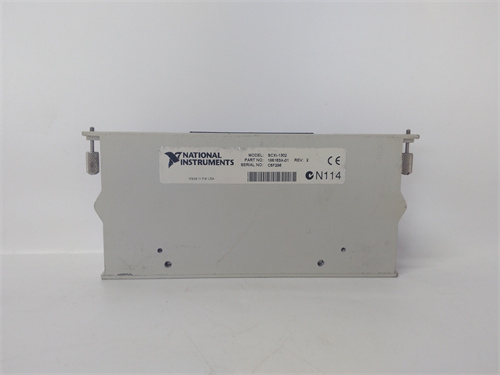

SCXI-1302

Description

‌Parameters‌:

Maximum wire gauge: 26-16AWG
DC coupling
Turnover frequency: 0.16 Hz 1-pole RC
DC rejection: ±50 VDC

‌Specifications‌:

Designed as a terminal block for connecting sensor, signal source, and other equipment signals to modular measurement systems
Multiplexer function allows multiple input signals to be connected to a single acquisition channel
Equipped with adapters and connectors for stable and reliable signal connections
Shielded design for fast and reliable signal connections
Supports rack-mount and DIN rail mount options

‌Dimensions and Weight‌:

Weight: 2KG (Note: Another source mentions 1.2kg, but 2KG seems to be the more common specification.)
Dimensions are not specifically mentioned.

‌Series‌:

Part of the NI SCXI series

‌Features‌:

50-screw front-wiring terminal
Stress relief clips to ensure signal wires are securely in place
Designed for seamless signal connections
Compatible with SCXI-1180 feedthrough board for simple signal connection

‌Functions‌:

Primarily used for data acquisition, testing, and control by connecting signals from sensors, signal sources, and other equipment to modular measurement systems
Operates using NIDAQmx driver software, which can be programmed using software packages or application development environments like LabVIEW, LabWindows/CVI, ComponentWorks, etc.
Configuration can be done using the Measurement & Automation Explorer (MAX) tool
