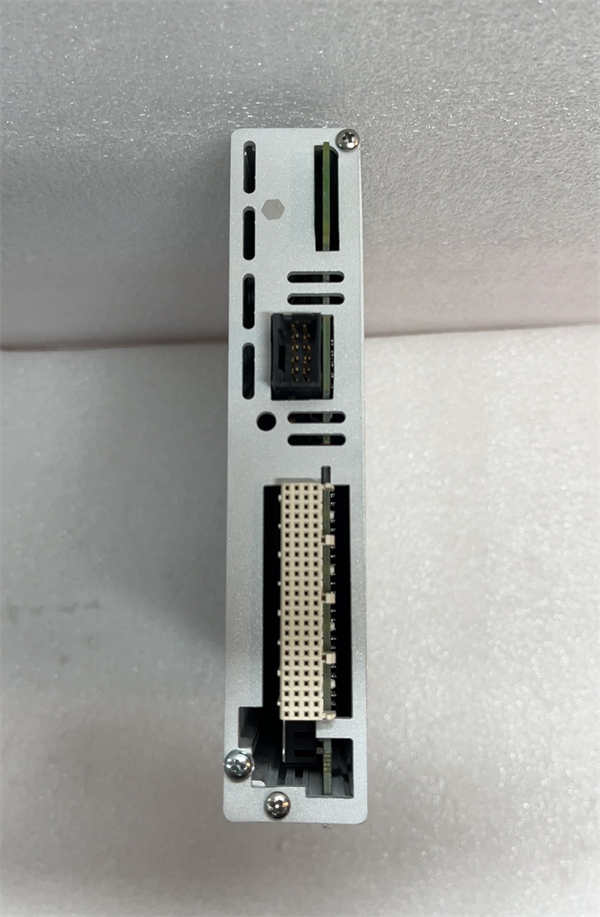

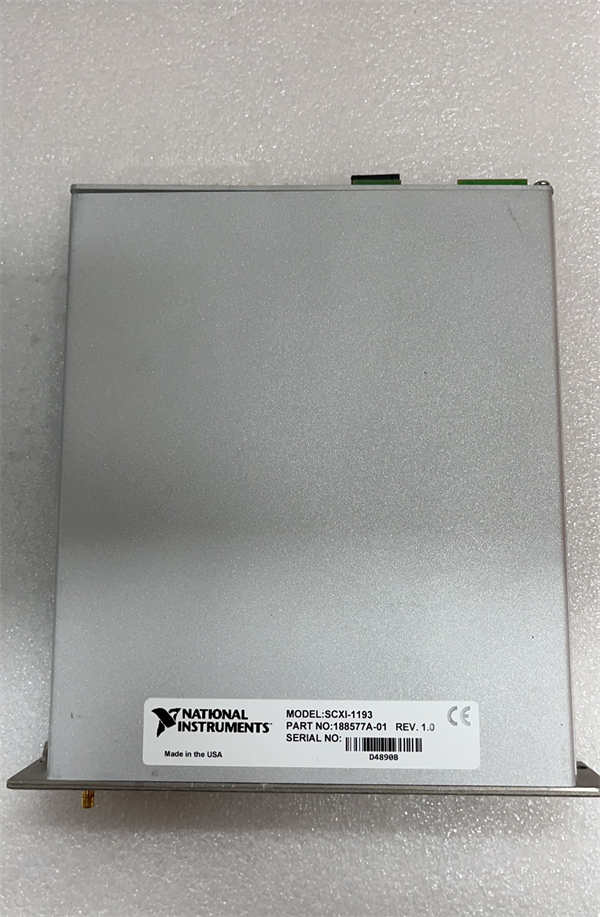

SCXI-1193

Description

Parameters and specifications
Model: SCXI-1193
Manufacturer: National Instruments (NI)
Part number: 776572-93
Number of channels: 32
Frequency range: DC to over 500MHz
Scan rate: maximum 100 operations/second
Relay life: mechanical life of 50 million cycles, electrical life of 300,000 cycles (30V 0.3A DC resistance)
Trigger characteristics: Input trigger comes from SCXI trigger line 0 to 7, front panel, rear connector; Minimum pulse width 150 nanoseconds; The output trigger destination is SCXI trigger line 0 to 7, front panel, rear connector; Programmable pulse width (1μs to 62μs)
Physical properties: the type of relay is electromechanical latching relay; Contact materials are silver, palladium and gold
Size and weight
Dimensions: 1.2 x 6.8 x 7.8 inches (or 3.0 x 17.3 x 19.8 cm)
Weight: 2 ounces
trait
High density and flexibility: The SCXI-1193 can be programmed to be configured in a variety of topologies, such as a four-way 8 x 1 multiplexer, a dual-way 16 x 1 multiplexer, etc.
Durability: Suitable for a variety of industrial and laboratory environments with high reliability and stability.
Wide applicability: Can be arranged as unterminated multiplexers, externally terminated multiplexers, or dimensional universal sparse matrices, each of which can withstand signal frequencies from DC to more than 500MHz.

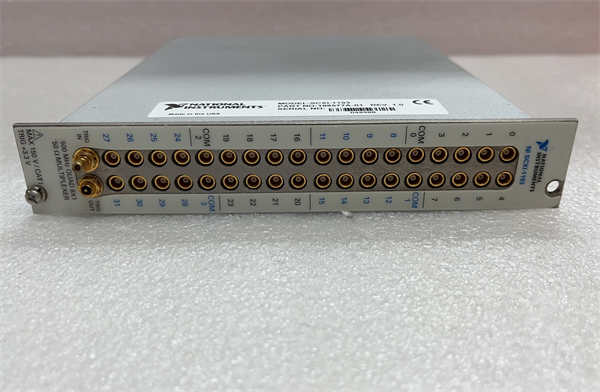

Connectivity: Features 36 MCX jacks for I/O connectors and 2 SMB jacks for trigger connectors for easy integration with high-frequency devices.
Programmability: Can be configured through programming to meet different application requirements.
