Description
** product description :**

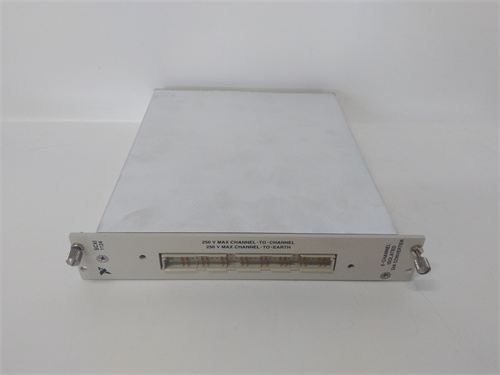

Ni scxi-1124 offers 64 double wire channels with low binding and high insulation. It can be used for routing signals in automated test systems, data collection and sensor switching applications. The module is compatible with a wide range of signals, including analog, digital and thermocouples.
** product parameters :**
– number of channels: 64
– channel type: double wire
– switching type: no latch
– maximum voltage: 250 VRMS, 350 VDC
– maximum current rating: 2 a
** technical specifications :**
– contact resistance: < 1 ohm
– input loss: < 0.1 db – insulation: > 60 db
– capacity: dc to 30 MHZ
– operating temperature: from 0 to 55 degrees
– dimensions: 3u, 19 “anchorage
