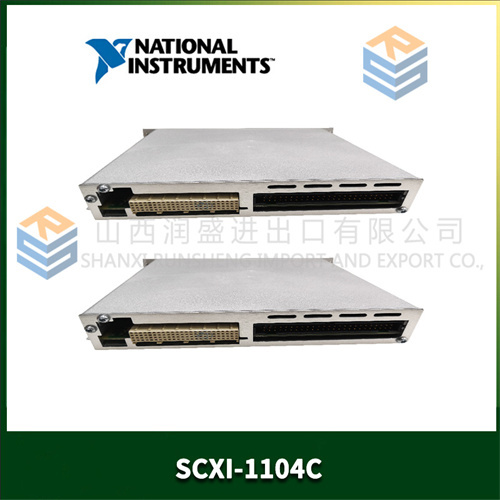

SCXI-1104C

Description

argument
Number of channels: Usually 16 differential input channels, but can also support 32 single-ended input channels.
Resolution: There are many terms, including 24-bit analog-to-digital converter, 12-bit and 32-bit. Please note that the specific resolution may vary depending on the product model or configuration.
Sampling rate: The maximum sampling rate is 100 kS/s, but the specific rate may vary according to application requirements.
Input voltage range: ±10 V, suitable for a variety of common signal types and voltage standards.
Input impedance: 1 MΩ || 5 pF to ensure stable signal transmission.
Output voltage: 24VDC in some descriptions, but please note that this may be related to the specific configuration or purpose of the module.
Output points: 8 isolated points, which may refer to the output capability of the module in certain configurations.
specification
Operating temperature range: varies from description to description, such as -40 ° C to 85 ° C or 32 ° C to 90 ° C, depending on the product model and operating environment.
Communication protocols: Support Ethernet /IP and other communication protocols to facilitate data exchange with other devices or systems.
Driver software: Support NI driver software such as DAQmx, which is convenient for users to collect and process data.
Size and weight
Size: varies from description to description, such as 3.3 x 22.9 x 14.0 cm or 40 x 40 x 30 (may be in mm), or even 13.4 x 5.0 inches (converted to cm is about 34.04 x 12.7).
Weight: It varies from description to description, such as 0.36 kg, 3.5 kg or 0.56kg.
trait
Multi-channel and flexibility: Supports simultaneous acquisition of multiple channels, and can connect multiple sensors or signal sources for data acquisition, meeting the requirements of various application scenarios. Programmable, you can use programming languages (such as LabVIEW) to configure and control modules to meet the needs of specific applications.
High precision: A high-performance ADC (analog-to-digital converter) provides high resolution and high precision data acquisition.
Compatibility: Compatible with other hardware and software products of National Instruments, it can be connected to other instruments or computers, such as PCI interface or Ethernet interface, for easy integration into various systems.
Easy calibration and maintenance: The user can follow the calibration guide to ensure the accuracy of the measurement. At the same time, the maintenance cost of the module is relatively low.
