Description
Parameters and specifications:
Number of channels: Usually 16 differential input channels or 32 single-ended input channels, allowing multiple signals to be collected simultaneously.
Resolution: 24-bit analog-to-digital converter provides high precision data acquisition.
Sampling rate: The maximum sampling rate is 100 kS/s, but the specific rate may vary according to application requirements.
Input voltage range: ±10 V, suitable for a variety of common signal types and voltage standards.
Input impedance: 1 MΩ || 5 pF to ensure stable signal transmission.
Size and weight:
Dimensions: Approximately 3.3 x 22.9 x 14.0 cm (may vary by manufacturer or version).
Weight: about 0.36kg (some data show about 0.5kg).
Series:

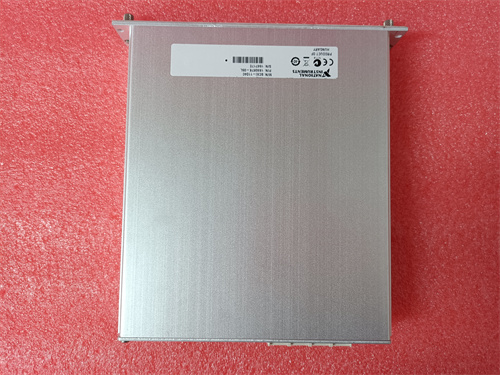

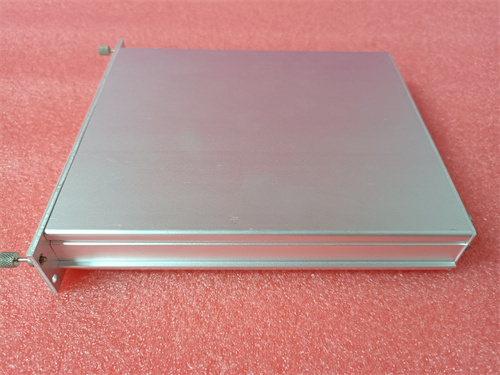

The SCXI-1104C is part of NI’s Signal Conditioning eXtensions for Instrumentation (SCXI) family.
Features:
Multi-channel and flexibility: Supports simultaneous acquisition of multiple channels, and can connect multiple sensors or signal sources for data acquisition, meeting the requirements of various application scenarios.
Programmability: Modules can be configured and controlled using programming languages such as LabVIEW to meet the needs of specific applications.
Compatibility: Compatible with other hardware and software products of national instruments for easy integration into various systems.
High accuracy and stability: Provides high precision data acquisition with stable performance.
Easy calibration and maintenance: The user can operate according to the calibration guide, ensuring the accuracy of the measurement, while the maintenance cost is relatively low.
Functions:
SCXI-1104C data acquisition module is widely used in various fields requiring high-precision data acquisition, such as test measurement, automation control, scientific research, etc.
It is especially suitable for real-time acquisition, monitoring and analysis of analog signals, such as the measurement of physical quantities such as temperature, pressure, flow and vibration.
