Description
Parameters and specifications:

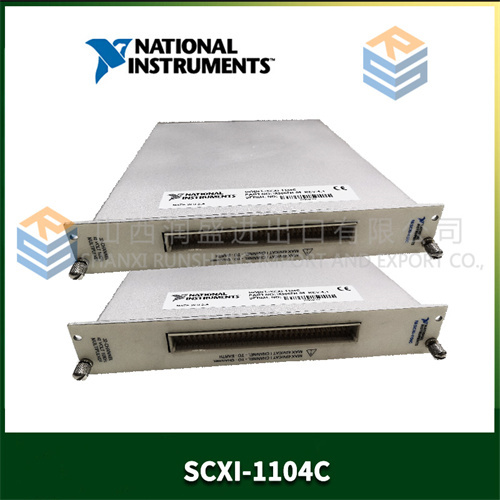

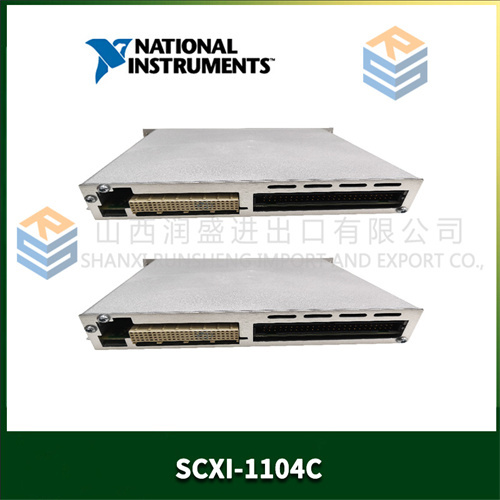

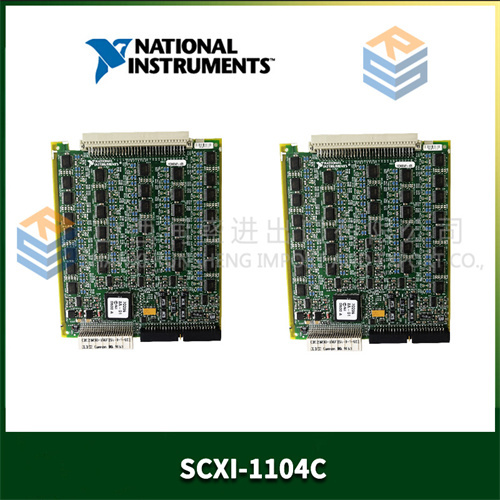

Number of channels: Usually 16 differential input channels are used to measure various signal types. There are also specific models such as the SCXI-1104C voltage input module with 32 differential channels.
Resolution: Provides a 24-bit analog-to-digital converter to ensure high precision data acquisition.
Sampling rate: The maximum sampling rate is 100 kS/s, but the specific rate may vary according to application requirements. The module usually has an adjustable sampling rate to meet the needs of different applications.
Input voltage range: ±10 V, suitable for a variety of common signal types and voltage standards.
Input impedance: 1 MΩ || 5 pF to ensure stable signal transmission.
Size and weight:
Size: There are two different size information. One is 3.3 x 22.9 x 14.0 cm and the other is 1.2 x 6.8 x 7.8 inches (approximately 3.05 x 17.27 x 19.81 cm).
Weight: 0.36 kg or 2 ounces (about 0.057 kg) depending on the source.
Features:
Versatility: Supports many types of analog signal inputs, such as voltage, current, resistance, etc., and can be configured for different acquisition modes, such as single point, multi-point, scan, etc.
Programmability: Can be configured and controlled using programming languages such as LabVIEW to meet the needs of a specific application.
High reliability: Using high-quality hardware and software technology, it can operate stably in harsh working environments.
Scalability: More complex data acquisition and processing tasks can be implemented by adding modules and devices from other NI companies.
