Description
Parameters and specifications:
Number of channels: Multiple channels are supported, typically 32 single-ended or 16 differential input channels.
Resolution: A high-resolution ADC that provides highly accurate data acquisition.
Sampling rate: Depends on the specific model and application requirements.
Input voltage range: ±10 V, suitable for a variety of common signal types and voltage standards.
Input impedance: 1 MΩ || 5 pF to ensure stable signal transmission.
Interface: Support a variety of interface options, such as USB, PCI, PXI and Ethernet, easy to connect with the computer or control system.
Size and weight:
Dimensions: Different sources give slightly different dimensions, such as 10cm x 10cm x 5cm (provided by Shenzhen Changxin Automation Equipment Co., LTD.) or 3.3 x 22.9 x 14.0cm (another description).
Weight: About 0.5kg (provided by Shenzhen Changxin Automation Equipment Co., LTD.) or 0.36kg (another description).
Series:

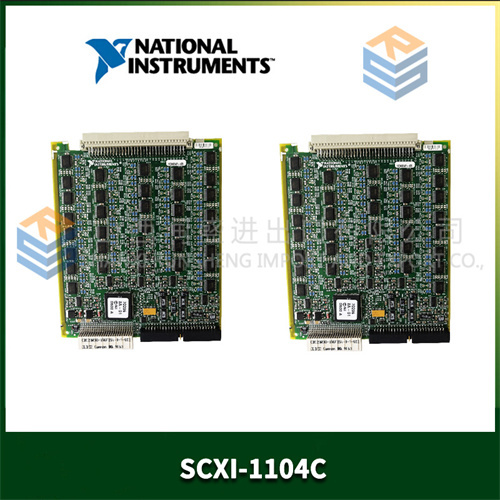

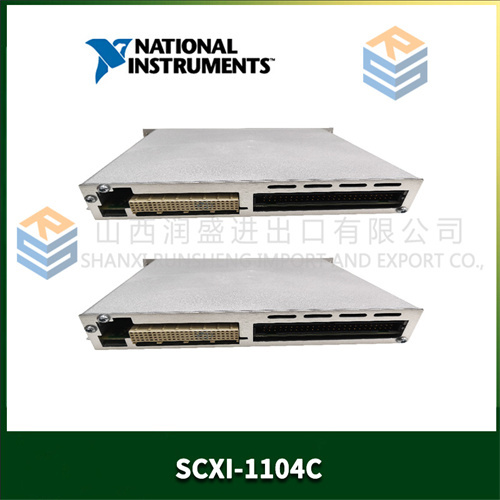

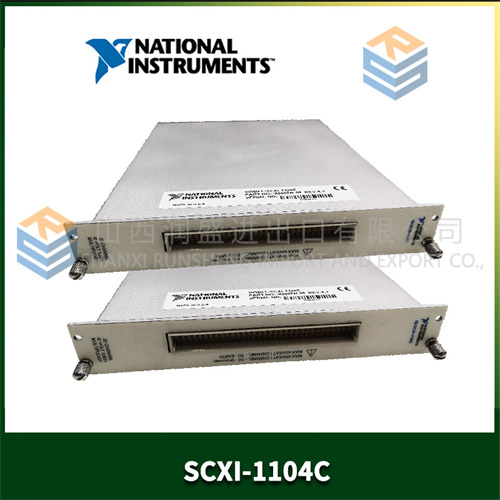

The SCXI-1104C belongs to the Signal Conditioning eXtensions for Instrumentation (SCXI) family from National Instruments (NI). It is a data acquisition module designed to provide reliable data acquisition solutions for scientific research and industrial automation.
Features:
High performance and accuracy: The SCXI-1104C offers high accuracy and stability to provide high quality data acquisition.
Multi-channel and flexibility: Supports simultaneous acquisition of multiple channels, and can connect multiple sensors or signal sources for data acquisition, meeting the requirements of various application scenarios.
Programmability: Modules can be configured and controlled using programming languages such as LabVIEW to meet the needs of specific applications.
Compatibility and scalability: Compatible with other hardware and software products of National Instruments, easy integration into existing systems or platforms.
Easy calibration and maintenance: The user can operate according to the calibration guide, ensuring the accuracy of the measurement, while the maintenance cost of the module is relatively low.
Functions:
SCXI-1104C data acquisition module is widely used in various fields requiring high-precision data acquisition, such as test measurement, automation control, scientific research, etc.
It is especially suitable for real-time acquisition, monitoring and analysis of analog signals, such as the measurement of physical quantities such as temperature, pressure, flow and vibration.
