Description
. Specifications
: modular data acquisition instrument
two, the weight
Weight : 1.25kg
three, the role
main function : to meet the needs of different data acquisition applications, such as voltage, current, resistance, capacitance, thermocouple, thermistor, strain gauge and other input types of acquisition.
. Parameter
Power supply : 100-240 VAC, 50/60 Hz, auto adapt
Maximum sample rate : 10 KS/s
Number of channels : 96 differential /192 single-ended
Input type : voltage, current, resistance, capacitance, thermocouple, thermistor, strain gauge, etc
Interface type : interface for the SCXI front-end module, and interface for the SMB impedance adapter
Maximum voltage range : ±500 V differential /±250 V single-ended
resolution : 16 bits
. Size
Dimensions : 44.5mm x 213.4mm x 281.9mm

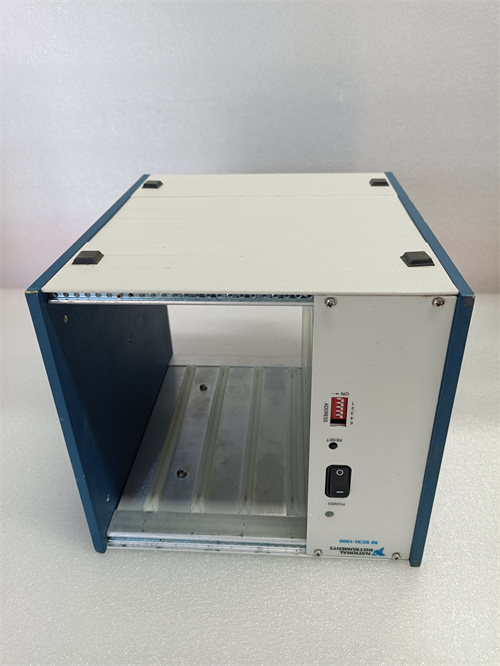

In summary, the SCXI-1000 is a highly scalable, flexible, and stable modular data acquisition instrument. It has the characteristics of high-speed acquisition, high resolution, programmable control, and is compatible with a variety of hardware and software products, and can be widely used in various engineering test and measurement applications
