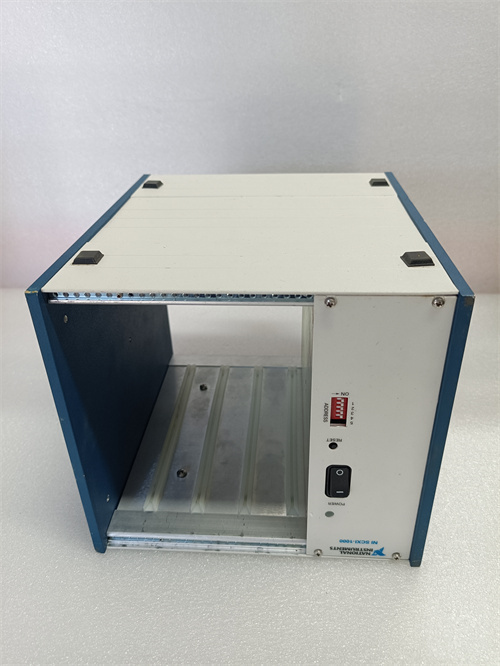

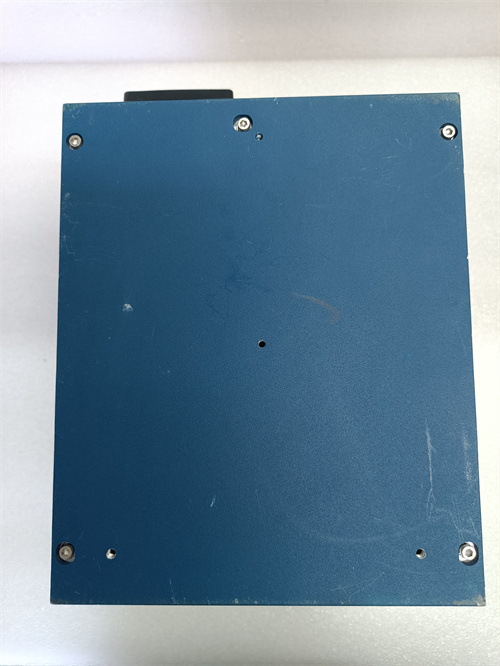

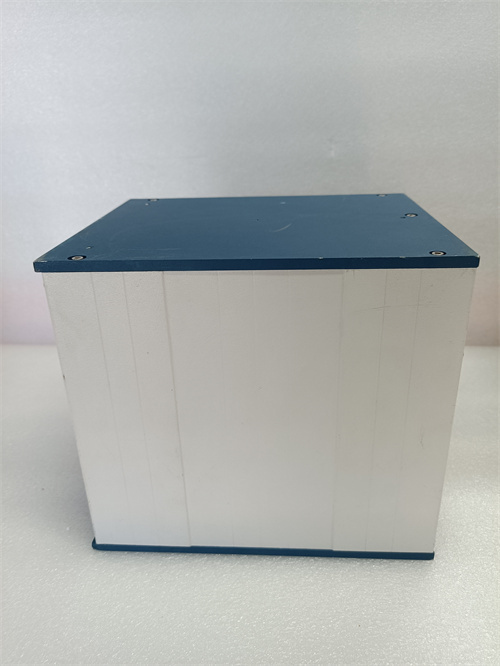

SCXI-1000

Description

Parameters and specifications
Overall dimensions: 44.5mm x 213.4mm x 281.9mm
Weight: 1.25kg
Power requirements: 100-240 VAC, 50/60 Hz, automatic adaptation
Maximum sampling rate: 10 KS/s
Number of channels: 96 differential /192 single-ended
Input type: Support voltage, current, resistance, capacitance, thermocouple, thermistor, strain gauge and other input types
Interface type: SCXI front-end module interface, SMB impedance adapter interface
Maximum voltage range: ±500 V differential /±250 V single-ended
Resolution: 16 bits
trait
Modular design: Different modules can be combined according to actual needs to meet the needs of various digital quantity control systems.
High reliability: High quality materials and processes are used in the design and manufacturing process to ensure stable operation under harsh environmental conditions.
Multi-channel support: Support multiple digital input/output channels, can simultaneously process multiple signals, improve the processing capacity of the system.
Easy integration: Support a variety of communication protocols and interface standards, easy to integrate with other industrial automation equipment.
Easy to use and maintain: provides a simple and easy-to-use operation interface and user-friendly maintenance functions, convenient for users to set, monitor and control.
High scalability and flexibility: Support for hot-swappable modules, flexibly expand the number of acquisition channels and input types according to specific requirements.
Programmable control: Support a variety of programming languages, including LabVIEW, C, C++, Visual Basic, MATLAB, etc., can easily carry out programming control and data processing.

effect
Test and measurement systems: Can be used to build a variety of test and measurement systems to evaluate the performance of electrical, electronic or mechanical systems, including laboratory measurements, automated test benches and production tests.
Industrial automation: In the field of industrial control and automation, it can be used to monitor and control digital signals, such as switch status, sensor signals, etc., to improve the efficiency and reliability of production lines.
Other industries: such as agriculture, construction, fire and rescue, oil and gas, mining, power generation, motor control, material handling, trucking, mass transportation and Marine applications.
