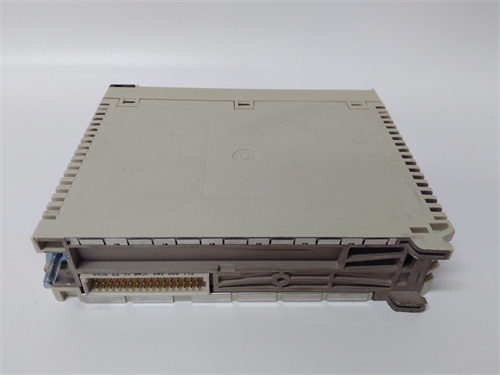

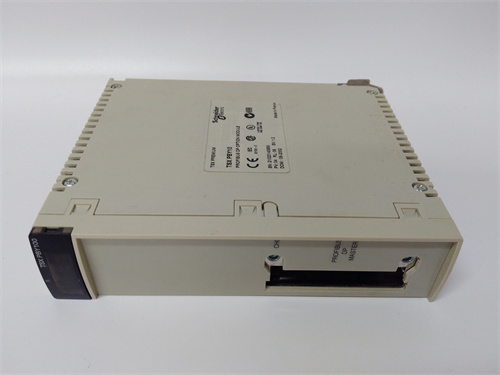

Schneider TSXPBY100

Description

Schneider TSXPBY100 is a communication module specifically designed for industrial automation and control systems. Here is a breakdown of its parameters, specifications, dimensions, weight, series, features, and applications in English:

Parameters and Specifications:

• Type: TSXPBY100 is an I/O module, offering excellent flexibility and expandability¹.
• Voltage Range: The input voltage range is 24VDC to 48VDC, while the output voltage is 24VDC, with a maximum voltage range of 220VDC³.
• Communication Protocol: It supports Profibus DP, a process-oriented, master-slave linear bus used for connecting PLCs with distributed I/O devices²³.

Dimensions and Weight:

• Dimensions: The module measures 26mm x 33mm x 37mm⁴.
• Weight: The weight is approximately 1.309 kg (2.89 pounds) for a packaged unit⁵.

Series:

• TSXPBY100 belongs to the Modicon Premium series of Schneider Electric’s products¹.

Features:

• Flexibility: It provides exceptional flexibility and scalability, making it suitable for a wide range of applications¹.
• Robustness: Designed for maximum uptime and robustness, it offers reliable performance in industrial environments¹.
• Compatibility: It can be installed in any expansion slot of the Premium PLC rack, including PCMCIA card slots and the PCMCIA card for Profibus DP³.
• Communication Capabilities: With its Profibus DP communication capabilities, it enables seamless communication and control between PLCs and other devices on the bus²³.

Applications:

• TSXPBY100 is commonly used in industrial automation systems, connecting and communicating with controllers, PLCs, sensors, actuators, and other automation equipment. It helps integrate and coordinate the operations of the entire production line⁶.
• It can be utilized in data acquisition systems for monitoring various sensor and instrument data, such as temperature, pressure, and flow, enabling real-time monitoring and data recording⁶.
• The module’s remote communication functionality allows for remote monitoring and control, which is beneficial for remote device supervision and troubleshooting⁶.
