Description
Parameters and Specifications

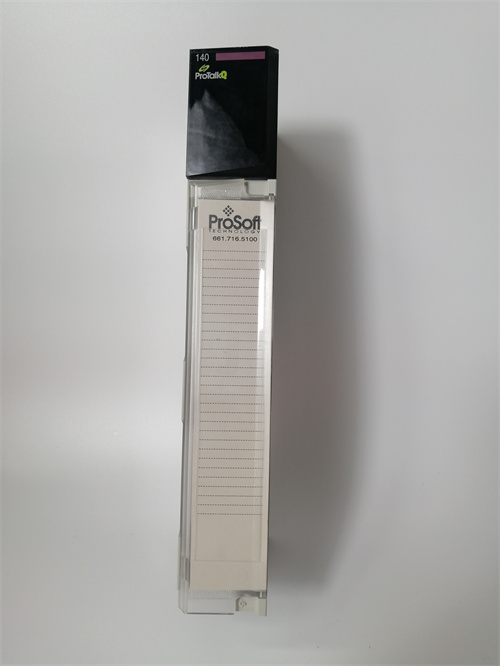

- Model: PTQ-PDPMV1
- Brand: Schneider
- Communication Interfaces: Ethernet, Serial, PROFIBUS DP17
- Processor: Based on Infineon C165 microprocessor on Siemens ASPC2 Step E ASIC1
- Firmware: Flash upgradable1
- Max Modules per Rack: 6 (4 for hot standby implementation)1
- Backplane Current Load: 5V DC ±5% max 1100 mA1
- Operating Temperature: 32°F to 140°F (0°C to 60°C)1
- Storage Temperature: -40°F to 185°F (-40°C to 85°C)1
- Relative Humidity: 5% to 95% (non-condensing)1
- Vibration: 4 to 100 Hz sine, 30 g shock1
Dimensions and Weight
- Dimensions: Not specifically mentioned.
- Weight: 2 kg (approximate, as mentioned in a similar module from a different vendor in [5]^).
Series
- Part of Schneider’s Quantum series or PROSOFT family1
Features
- Ease of Configuration: Includes ProSoft Configuration Builder software for design, configuration, and monitoring1.
- Fieldbus Connectivity: Supports PROFIBUS DP communication1.
- High Performance: High-speed data transfer on the backplane for fast update times1.
- Modular Design: Allows easy addition or replacement of modules3.
- Standard Compliance: Approved by Schneider Electric CAPP and PROFIBUS Trade Organization (PTO)1.
- Electrical Isolation: Optical isolation for RS-485 PROFIBUS port1.
- Real-Time Performance: Supports real-time operation and millisecond-level response to input signals3.
- Programming Flexibility: Supports commonly used Quantum programming tools1
Applications
- Used as a primary network interface module in Schneider’s Quantum system for data exchange with PROFIBUS DP networks1.
- Suitable for industrial automation and control systems requiring reliable and efficient communication with PROFIBUS DP devices1
