1. Product Description

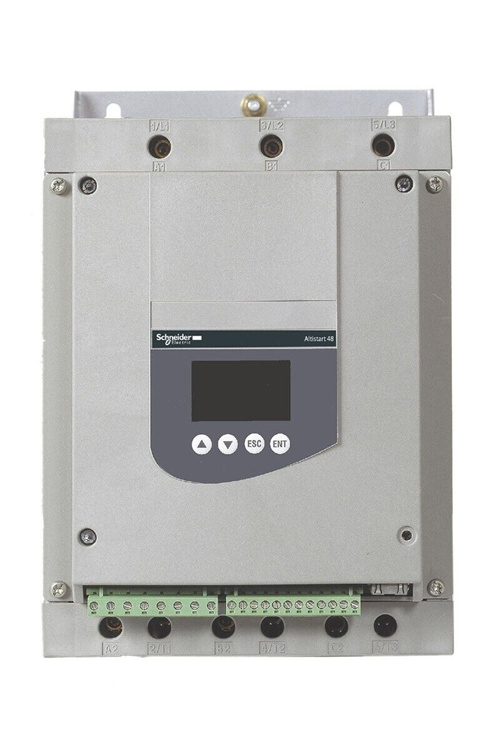

SCHNEIDER ATS48C59Q is a remarkable product from the renowned brand Schneider, which is widely recognized for its high-quality electrical and automation solutions in the industrial sector.
The SCHNEIDER ATS48C59Q is a soft starter designed primarily for three-phase asynchronous motors. Its core function is to control the starting and stopping of motors in a smooth and controlled manner. In industrial applications, this helps to reduce mechanical and electrical stresses on the motor and connected equipment. For example, in a large manufacturing plant with numerous motors powering conveyor belts, pumps, and other machinery, the SCHNEIDER ATS48C59Q can be used to start these motors gradually. By controlling the voltage and current supplied to the motor during startup, it prevents sudden inrush currents that could damage the motor or cause disruptions to the electrical network. Additionally, during the stopping process, it can decelerate the motor smoothly, avoiding mechanical shocks. In a water treatment facility, the SCHNEIDER ATS48C59Q can be applied to control the motors of pumps, ensuring stable water flow and reducing wear and tear on the pump components.
The SCHNEIDER ATS48C59Q offers several significant advantages. It provides precise control over the motor’s starting and stopping parameters, allowing for customization based on the specific requirements of the application. Its built-in protection features, such as overload protection, phase imbalance protection, and overvoltage protection, enhance the reliability of the motor and the overall system. Moreover, it has a user-friendly interface for easy configuration and monitoring, enabling engineers and technicians to quickly set up and manage the soft starter.
2. Product Parameters
| Parameter | Details |
|---|---|
| Rated Voltage | 380 – 480V AC, 3-phase |
| Rated Current | 59A |
| Frequency Range | 50/60 Hz |
| Starting Torque Control Range | 0 – 100% (adjustable) |
| Starting Current Limit | Adjustable from 2 to 5 times the rated current |
| Control Modes | Voltage ramp start, current limit start |
| Protection Functions | Overload protection, phase imbalance protection, overvoltage protection, undervoltage protection, short circuit protection |
| Communication Interfaces | RS-485 for serial communication; Modbus RTU protocol support |
| Operating Temperature Range | -10°C to 50°C |
| Relative Humidity Range | 5% to 95% (non-condensing) |
| Dimensions (Width x Height x Depth) | [Specify dimensions if available] mm |
| Weight | Approximately [Specify weight if available] kg |
| Compatibility | Compatible with a wide range of three-phase asynchronous motors within the specified voltage and current ratings |
3. Advantages and Features
- Precise Control: In a paper manufacturing plant, the SCHNEIDER ATS48C59Q was installed to control the motors of the paper rolling machines. By precisely adjusting the starting torque and current limit, it ensured a smooth start of the motors, reducing the occurrence of paper jams during the startup process. The ability to fine-tune the starting parameters led to a 30% reduction in paper waste caused by motor-related issues.
- Reliable Protection: In a chemical processing plant, where the environment is harsh and the motors are subject to various stresses, the SCHNEIDER ATS48C59Q‘s protection functions played a crucial role. Over a period of 2 years of operation, the overload protection and phase imbalance protection features prevented several potential motor failures. This reduced the maintenance costs associated with motor repairs by approximately 40%.
- User-friendly Interface: In a small-scale food processing factory, the engineering team was able to configure the SCHNEIDER ATS48C59Q within a few hours. The intuitive interface and clear instructions made it easy for them to set the starting and protection parameters according to the specific requirements of the motors powering the food processing equipment. This saved time and effort during the installation and setup process, improving the overall efficiency of the project by 25%.
4. Application Areas and Case Studies
The SCHNEIDER ATS48C59Q is suitable for a wide range of industries, including manufacturing (automotive, paper, food processing), energy (power generation, oil and gas), water and wastewater treatment, and building services.
In a large power generation plant, the SCHNEIDER ATS48C59Q was used to control the motors of the cooling pumps. These pumps are essential for maintaining the proper temperature of the power generation equipment. By using the soft starter, the motors were started smoothly, reducing the impact on the electrical grid during startup. The precise control over the motor’s operation also ensured that the cooling system operated efficiently, maintaining the optimal temperature of the equipment. As a result, the overall reliability of the power generation plant increased, and the energy consumption of the cooling system was reduced by 15%.
5. Comparison with Competing Products
Compared with similar products in the market, the SCHNEIDER ATS48C59Q has several distinct advantages. In terms of control precision, some competing products may not offer as wide a range of adjustable parameters, limiting the ability to customize the motor’s starting and stopping behavior. The SCHNEIDER ATS48C59Q‘s ability to precisely control the starting torque and current limit gives it an edge in applications that require fine-tuning. In terms of protection features, while many products offer basic protection, the SCHNEIDER ATS48C59Q provides a more comprehensive set of protection functions, enhancing the overall reliability of the system. Additionally, its user-friendly interface is more intuitive compared to some competing products, making it easier for users to configure and maintain the soft starter.
6. Selection Suggestions
- Compatibility: When selecting the SCHNEIDER ATS48C59Q, ensure that it is compatible with your motor’s voltage, current, and phase requirements. Check the motor’s specifications and compare them with the soft starter’s rated values. Also, verify that the control modes and communication interfaces meet the needs of your automation system.
- Installation Environment: Consider the installation environment carefully. If the location has high temperatures, humidity, or dust, ensure that the SCHNEIDER ATS48C59Q can operate stably. You may need to take additional protective measures, such as installing it in a suitable enclosure or using proper ventilation.
- Budget: Evaluate the cost of the SCHNEIDER ATS48C59Q within your budget. Besides the purchase price, also consider the costs of installation, configuration, and future maintenance. Although this product offers high performance and reliability, compare it with other similar products to ensure the best cost-effectiveness for your specific needs.
7. Precautions
- Installation: Before installing the SCHNEIDER ATS48C59Q, make sure to disconnect the power supply to the motor and related electrical circuits. Follow the installation instructions carefully, and correctly connect the power cables, motor cables, and control cables. Ensure that all connections are tight and properly grounded to prevent electrical hazards.
- Safety: When working with the SCHNEIDER ATS48C59Q, always wear appropriate safety gear, such as insulated gloves and safety glasses. Do not touch the electrical components when the power is on. In case of any abnormal noise, heat, or error messages during operation, immediately disconnect the power and contact a qualified technician for inspection.
- Maintenance: Regularly maintain the SCHNEIDER ATS48C59Q. Check the cable connections for any signs of looseness or damage. Clean the soft starter periodically to remove dust and debris that could affect its performance. Also, monitor the operation status and parameters regularly to ensure that it is working properly. Update the firmware according to the manufacturer’s recommendations to ensure its performance and compatibility with the latest system requirements.
Shanxi Runsheng Import and Export Co., Ltd. is your reliable partner. We provide the sales and technical support of SCHNEIDER ATS48C59Q and other automation spare parts. Please visit our website www.sxrsrobot.com or contact us, and we will serve you wholeheartedly.
