Description

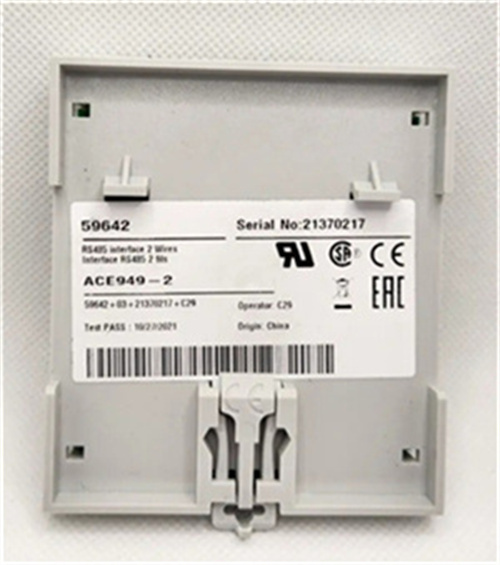

The SCHNEIDER ACE949-2 is a communication module designed for use in industrial automation and protection systems. Below is a breakdown of its parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters and Specifications:
Communication Protocol: Supports various communication protocols such as Modbus RTU, enabling seamless communication within the automation system.

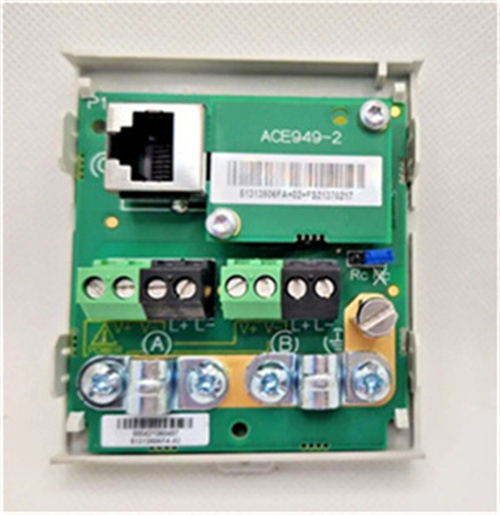

Interface: Offers 2-wire RS485 network interface for communication with other devices.
Voltage Range: Typically operates within a DC12–24V voltage range.
Insulation and Voltage Withstand Test: Typically rated for 35Vac/m insulation and voltage withstand testing.
Dimensions and Weight:
The exact dimensions and weight of the ACE949-2 module are not provided in the available references. It is recommended to refer to the official product documentation for these details.
Series:
The ACE949-2 module belongs to Schneider Electric’s range of protection and communication devices. It is part of a series of modules designed for industrial automation applications.
Features:
Multi-Purpose Compatibility: The ACE949-2 can be used in a wide range of applications, including but not limited to Sepam Series 20, 40, and 80 protection systems.
Flexible Configuration: It offers flexible configuration options, allowing users to set up and adjust protection functions according to their needs.
Diagnostics and Monitoring: It provides diagnostic capabilities and monitoring features to ensure the health and performance of the connected systems.
Role and Function:
Communication Hub: The ACE949-2 serves as a communication hub, enabling data exchange and control signals between different components within the automation system.
Protection Enhancement: It enhances the protection capabilities of the system by providing additional communication channels and control options.
Monitoring and Fault Detection: It monitors the system’s status and can detect faults or abnormalities, allowing for timely intervention and correction.
