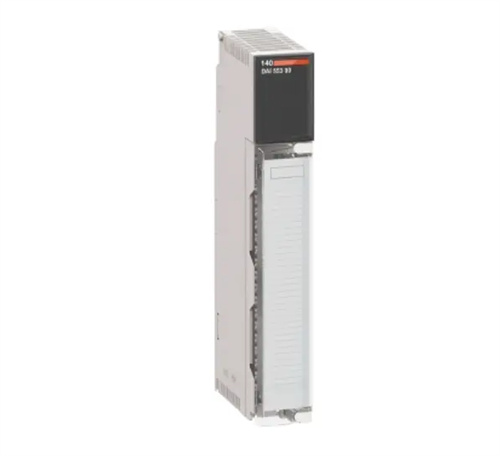

SCHNEIDER 140DAM59000

Description

Parameters and Specifications:

• Input/Output: 16 input points (2 groups of 8) and 8 output points (2 groups of 4)
• Input Voltage: 115VAC, with limits of 132V typical; 156V for 10 seconds; 200V within one cycle
• Output Voltage: 115VAC, with limits of 85-132V typical; 200VAC within one cycle; 156VAC for 10 seconds
• Reaction Time: 7.3-12.3 ms from 1 state to 0 state; 4.9-0.75 ms from 0 state to 1 state
• Load Current: Maximum <= 8A per module; <= 8A per group; <= 4A per point
• Voltage Drop: 1.5V¹

Dimensions and Weight:

• The exact dimensions and weight are not provided in the search results. However, it is typically designed for industrial applications, so it is likely to be compact and sturdy.

Series:

• SCHNEIDER 140DAM59000 belongs to the 140 series of input/output modules⁵⁷.

Features:

• Wide Input Voltage Range: AC from 85 to 264V, DC from 120 to 370V².
• Stable Output Voltage: Can be adjusted using a potentiometer².
• Harmonic Distortion Resistance: With anti-harmonic distortion input filter².
• Protection: Includes overload and short-circuit protection, thermal overload protection².
• Compliance: Complies with standards such as EN 55022B, UL508, CSA, and TUV².

Applications:

• SCHNEIDER 140DAM59000 is an input/output module used in industrial automation systems. It provides a bridge between sensors, actuators, and PLCs or other control systems¹².
