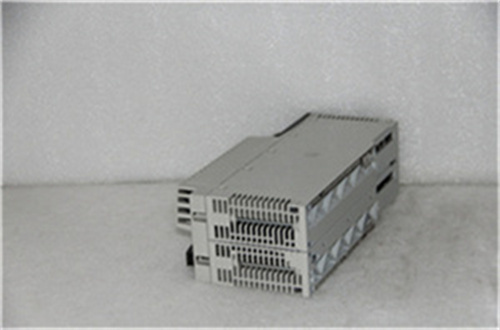

SCHNEIDER 140CPU65160

Description

Parameters and Specifications:

• Slots: Available in 2/3/4/6/10/16 slot configurations¹².
• I/O Capacity:
  • Local I/O: 1024 input and 1024 output channels (up to 27 slots)¹².
  • Remote I/O (RIO): 31,744 input and 31,744 output channels¹².
  • Distributed I/O (DIO): 8000 input and 8000 output channels per network¹².
• Analog I/O:
  • Local: 64 input and 64 output channels (up to 27 slots)¹².
  • Remote: 1984 input and 1984 output channels¹².
  • Distributed: 500 input and 500 output channels per network¹².
• Communication Modules: Supports Ethernet TCP/IP, Modbus Plus, Profibus DP, SY/Max Ethernet, SERCOS, and other combinations¹²³.
• Process Control Loops: 10 to 20 programmable channels¹².
• Memory:
  • IEC Program (Value): 109 Kb to 368 Kb¹².
  • Local Data (State RAM): 8192 input bits and 8192 output bits¹².

Dimensions and Weight:

• Exact dimensions and weight are not specified in the search results.

Series:

• 140CPU65160 belongs to the Quantum PLC (Programmable Logic Controller) series of SCHNEIDER Electric⁵.

Features:

• Powerful Processing: Handles large-scale control tasks³.
• Multiple Communication Interfaces: Supports various communication protocols for integration with other PLC modules, external devices, and supervisory systems³.
• Programmable: Allows users to write control logic using IEC 61131-3-like languages³.
• Fault Diagnosis: Capabilities for quick detection and resolution of system faults³.
• Real-Time Clock: Integrated for time-stamp and time-related control functions³.
• Ethernet Connectivity: Includes an RJ45 connector for Ethernet connectivity and a red LED for indicating Ethernet conflicts⁴.

Functions:

• 140CPU65160 is a central processor module designed for industrial automation and control systems³.
• It executes user-written control logic, monitors processes, and handles input/output signals³.
• It serves as the brains of the Quantum automation platform, providing control and monitoring capabilities for various industrial applications
