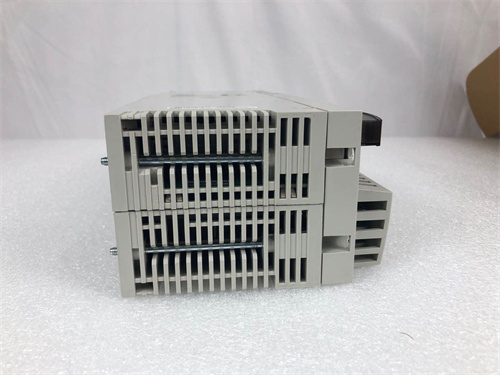

SCHNEIDER 140CPU65150

Description

Parameters and Specifications

• Model: 140CPU65150
• Brand: Schneider
• Processor Type: RISC²
• Clock Frequency: 166 Mhz¹²
• Memory: 512 MB (DDR2 SDRAM)³
• Communication Interfaces: Ethernet, Serial, CAN Bus³
• Operating Temperature: -20℃ to +60℃³
• Power Supply Voltage: 24V DC³

Dimensions and Weight

• Size: 14011853 mm (possibly a typo, as this seems unusually large. It’s likely a misrepresentation of the dimensions)²
• Weight: 0.3 kg (quoted in [2], but other sources such as [1] and [5] quote different weights)³

Series

• Part of Schneider’s Quantum series

Features

• Integrated Functions: Combines standard PLC functionality with web server diagnostic capabilities¹
• Communication: Uses RJ-45 connection for communication¹
• Slot Requirement: Requires two consecutive slots in a Quantum rack¹
• Web Server: Web server functionality is limited to diagnostics¹
• I/O Capabilities: 63 distributed I/O stations, 1 rack, and 3 distributed networks. Supports 8000 discrete inputs/outputs in distributed networks and 31744 in remote systems¹
• Optional Modules: Supports 6 optional modules including Ethernet, Modbus, Modbus Plus, Profibus DP, and Sy/Max¹
• Connectivity: 4 integrated connection types – Ethernet TCP/IP, Modbus, Modbus Plus, and USB¹²
• Data Rate: 10/100 Mbps

Applications

• A high-performance industrial control processor suitable for applications such as industrial automation control systems, intelligent building control systems, and robot control systems
