Description

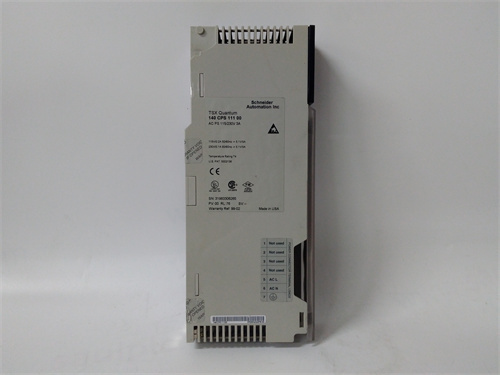

The SCHNEIDER 140CPS11100 is a power supply module designed for use in industrial automation and control systems. Here are its parameters, specifications, dimensions, weight, series, features, and functions described in English:
Parameters and Specifications:
Input Voltage/Power Type: The module accepts a wide range of input voltages, typically from 120 to 230 VAC, with a frequency range of 47 to 63 Hz.
Output Current: It provides multiple output channels with varying current ratings. For instance, it can output 400mA at 115V and 200mA at 230V.
Peak Current: The module has a peak current rating of 20A at 115V and 10A at 230V.
Power Rating: The power rating of the module is 50VA.
Fuse Rating: It is equipped with a 1.5A slow-break fuse for protection.
Harmonic Distortion: The harmonic distortion is less than or equal to 10%.
Dimensions and Weight:
Dimensions: The approximate dimensions of the module are not available in the current references. It is recommended to contact the manufacturer or refer to official documentation for accurate dimensions.
Weight: The weight of the module is typically around 1.19 pounds (approximately 0.54 kg) based on one reference, but it may vary depending on the specific configuration or packaging.
Series:
The 140CPS11100 belongs to the Schneider Electric series of power supply modules.
Features:
Multiple Output Channels: The module provides multiple output channels with varying voltage and current levels, making it suitable for powering multiple devices within a system.
Wide Voltage Range: It offers a wide voltage range to cater to the power needs of various devices and systems.
Protection Mechanisms: The module includes features like overload and short-circuit protection to safeguard against power-related issues.
Stability: It provides stable power output, ensuring reliable and consistent operation of connected devices.
Optional Hot Swap: Some models may support hot-swap functionality, allowing for module replacement without shutting down the entire system.
Functions and Applications:
Power Supply: The 140CPS11100 serves as a reliable power source for industrial automation and control systems, providing the necessary power to operate various devices and components.
System Integration: It integrates seamlessly with Schneider Electric’s automation solutions, facilitating smooth data exchange and system control.
Industrial Environments: Due to its robust design and features, the module is suitable for use in harsh industrial environments, ensuring the reliable operation of automation systems.
