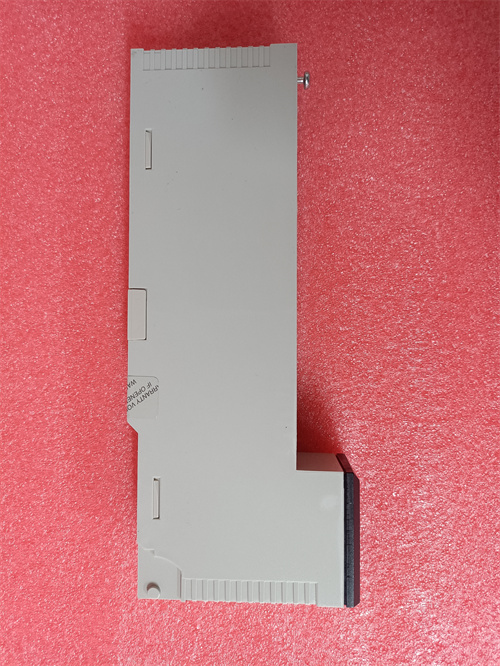

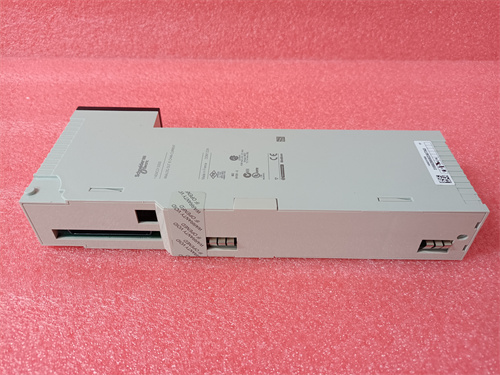

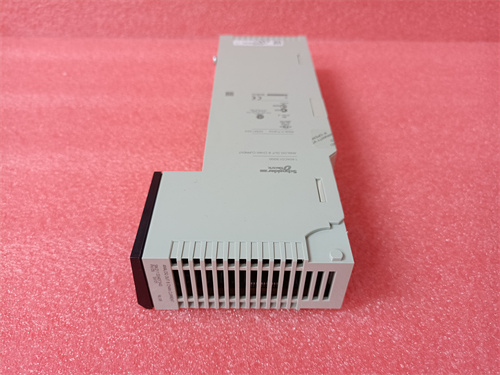

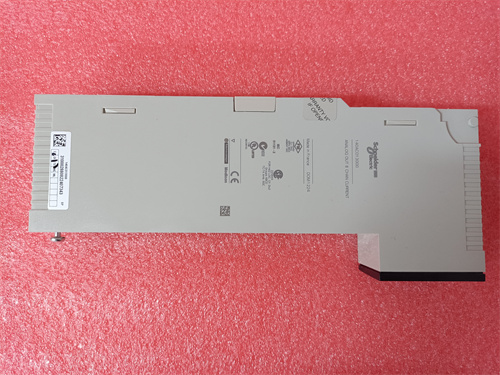

SCHNEIDER 140ACO13000

Description

Parameters and Specifications:

Output Quantity/Power: It offers 8 analog outputs with a power consumption of 5W.
Address Demand: It requires 8 output words.
Loop Voltage: Operates within a range of 6 to 30V DC.
Voltage Drop: It has a voltage drop of 6 to 30V at 25mA.
Analog Output Range: It supports various ranges such as 4 to 20mA, 0 to 4095 counts, 0 to 16000 counts, 0 to 25000 counts, and 0 to 20000 counts.
Update Time: It has an update time of 5ms.
Setting Time: The setting time can range from 1.6ms to 5% of the final value, and 3.2ms to +/-0.1% of the final value.
External Power Requirement: The module requires an external power supply ranging from 6 to 30V.

Dimensions and Weight:

Dimensions: It measures approximately 100 x 60 x 20 mm.
Weight: The module’s weight is approximately 1KG.

Features:

Modular Design: Its modular design allows for easy integration and replacement within larger automation systems.
Multiple Output Ranges: It supports various analog output ranges, making it suitable for a wide range of applications.
High Accuracy: The module offers high accuracy, ensuring reliable analog output.
LED Indicators: It incorporates LED indicators that provide visual feedback on the status of the outputs and any potential errors.
Environmental Compliance: The module meets various environmental regulations and standards.

Functions and Applications:

Analog Output Conversion: The 140ACO13000 converts digital signals into analog output signals, allowing precise control of analog devices and systems.
Industrial Automation: It is widely used in industrial automation applications, including process control, monitoring, and automation systems.
Integrated Communications: The module can be integrated into larger automation systems, enabling seamless data exchange and communication with other components.
