Description
1.Parameters:
–Processor: 667 MHz dual-core CPU12
–Memory: 512 MB DRAM and 512 MB non-volatile storage12
–FPGA: Zynq-7020 FPGA for user-reconfigurable logic12
2.Specifications:
–Operating System: Runs NI Linux Real-Time or similar real-time operating systems12
–Input/Output (I/O):
– 96 digital I/O lines at 3.3V1
– Gigabit Ethernet, CAN, serial, and USB ports13
3.Dimensions & Weight:
–Dimensions: Approximately 16.3cm x 19.6cm x 20.6cm
–Weight: 2.3kg
4.Series:
- Part of NI’s CompactRIO series, a line of embedded system control modules designed for industrial automation, data acquisition, and signal processing2
5.Features:
–High-Performance Hardware: Equipped with a dual-core CPU and FPGA for high-speed processing and custom logic12

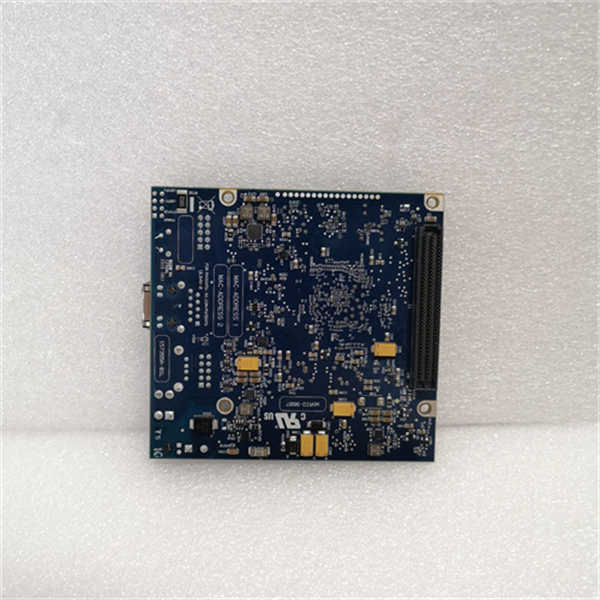

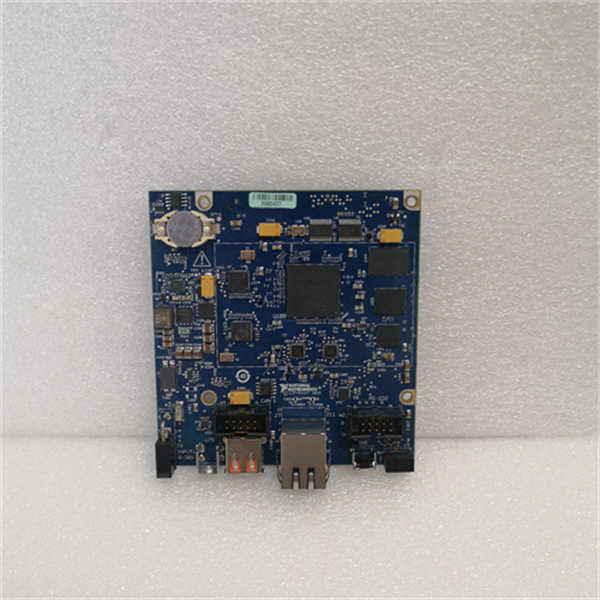

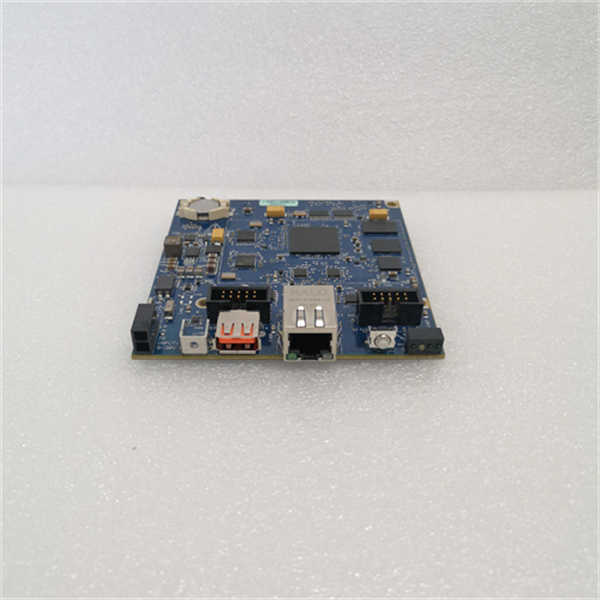

–Embedded Design: Integrates a real-time processor, reconfigurable FPGA, and I/O on a single printed circuit board (PCB)13
–Real-Time Response: Enables reliable real-time response for control and data acquisition tasks25
–Programmability: Supports advanced programming languages like LabVIEW, C/C++, and FPGA programming for customization25
–Data Acquisition and Processing: Capable of collecting sensor data, executing real-time signal processing, and generating control commands25
–Wide Temperature Range: Designed to operate in harsh industrial environments (-40°C to +85°C)3
–Compatibility: Integrates with various OPC and Microsoft applications, ensuring seamless integration with existing systems3
6.Functions & Applications:
–Data Acquisition: Collects data from sensors and other devices2
–Signal Processing: Executes real-time signal processing algorithms2
–Embedded Control: Provides high-performance control capabilities for industrial automation and control systems2
–Ideal for Complex Applications: Suitable for applications requiring high-speed processing, flexibility, and reliability
