Description
Size and weight:
Size:
132mm×105mm×52mm (quoted from Xiamen Haitong Huaye Technology Co., LTD.).
It is also mentioned that the dimensions are 100mm x 50mm x 20mm.
Weight: 800g (quoted from the product information of Xiamen Haitong Huaye Technology Co., LTD.), there is also information that the weight is 1.2kg.
Series:

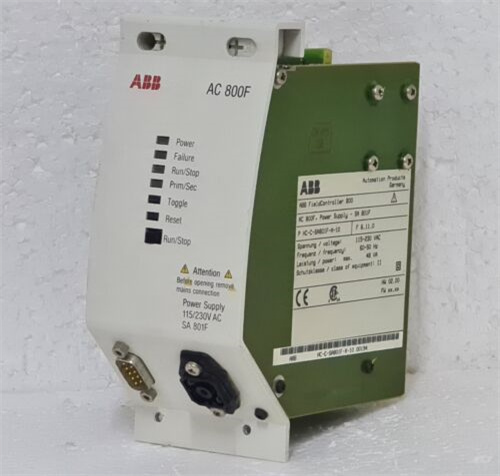

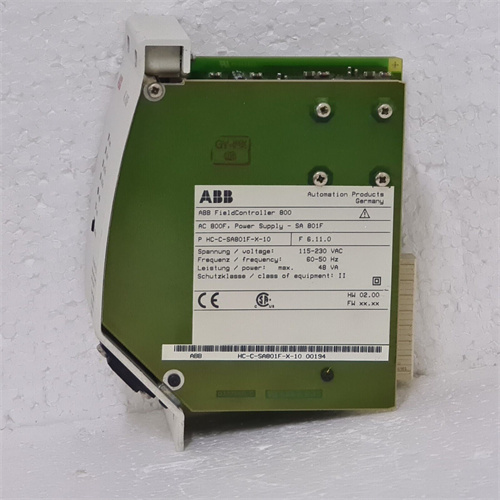

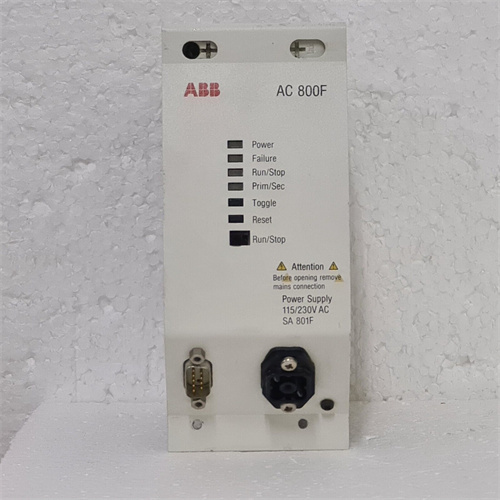

The SA801F is a power module product from brands such as ABB, commonly used in industrial automation and control systems.
Features:
Power fault alarm: Provides the alarm output function for optical fiber link fault and power fault.
Protection Grade: The housing has IP30 protection grade.
Wide input power range: suitable for different voltage environments.
EMC filtering function: Reduces electromagnetic interference.
Input and output voltage monitoring: provide power failure signal, overcurrent detection and short circuit protection.
Simulation test capability: The system simulation technology is adopted to realize the simulation test of the operating environment of the tested parts.
Parameters and specifications:
Power supply: Dual power supply redundant input, DC(9-36)V, typical DC24V, power consumption less than 4W.
Output voltage: provides 3.3VDC± 35a and 5.0VDC± 35a outputs for a total output power of 26.5W.
Input voltage range: Wide input power range (115~230VAC) with EMC filtering function.
Working environment:
Operating temperature: -10-70℃(-40~+85℃ wide temperature optional), there are also mentioned -40℃~70℃.
Relative humidity: ≤90% (no condensation).
Storage temperature: -40 ~ 80℃.
Testing and certification: including EN55022, EN61000-4-2, EN61000-4-3 and other standards.
