Description
Parameters and specifications:
Power supply: Dual power supply redundant input, DC(9-36)V, typical DC24V, power consumption less than 4W, with DC1500V voltage isolation and reverse protection function.
Output voltage: provides 3.3VDC± 35a and 5.0VDC± 35a outputs for a total output power of 26.5W.
Relay alarm output: fiber link fault and power supply fault alarm output, contact capacity: DC48V/1A.
Size and weight:
Overall dimensions: 132mm×105mm×52mm.
Net weight: 800g
Series:

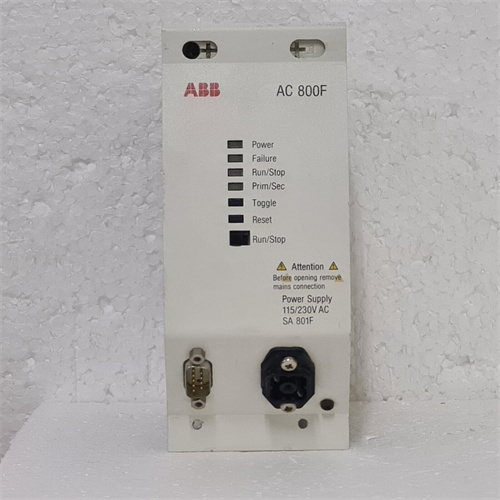

The SA801F is often sold as part of brands such as ABB, but is not explicitly labeled as a specific range.
Features:
Wide input power range: Support 115~230VAC.
EMC filtering function: With electromagnetic compatibility (EMC) filtering function.
Protection function: With short circuit and overload protection function, it can maintain output at least 20ms in case of power failure.
Monitoring function: With input and output voltage monitoring function, can provide power failure signal, overcurrent detection and short circuit protection function.
Simulation test capability: System simulation technology is adopted to realize the simulation and simulation functions of other components related to the tested components in the equipment and system.
Efficiency and reliability: Using the latest power electronics technology to ensure minimum internal resistance and maximum efficiency; The use of high-quality materials and strict production standards to ensure its reliability and durability.
Easy maintenance: Easy to replace parts designed for easy maintenance and upgrades.
Functions:
SA801F is a powerful power module, mainly used to power the CPU motherboard and modules in slots E1, E2, and F1~F4.
It is widely used in power, petroleum, mine lifting, port, heating, gas, water supply, sewage treatment, metallurgy, paper making, textile, chemical industry, water conservancy and other modern industrial fields. It can be used with PLC programmable control system, distributed control system (DCS), safety instrumentation system (SIS), ESD system, vibration monitoring system, steam turbine control and compressor unit control system (CCS) and other industrial control system components to achieve accurate and efficient automatic control.
