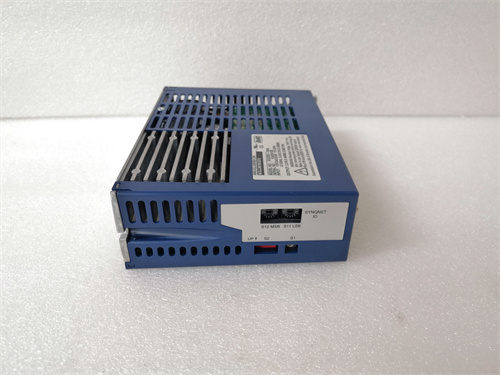

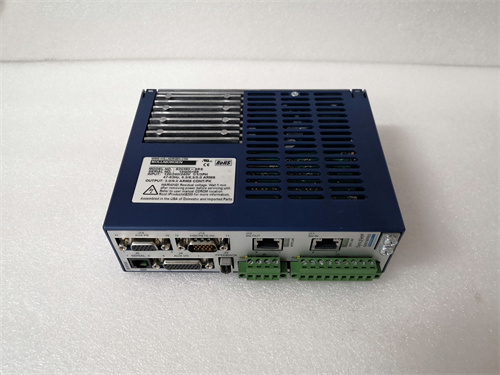

S20360-SRS

Product Description

Product Parameters

• Rated Voltage: 120/240 VAC or 20 – 90 VDC1.
• Rated Current: 1.5 Arms continuous, 48 Arms peak1.
• Power Range: 360 W to 11520 W1.
• Position Accuracy: ±0.001°1.
• Bandwidth: 3 – 5 kHz1.
• Communication Interfaces: EtherCAT, CANopen, Modbus RTU, etc.1.
• Working Temperature: – 40 to 85°C1.
• Protection Level: IP651.

Advantages and Characteristics

• High Precision: The S20360 – SRS uses 24 – bit high – resolution feedback and advanced control algorithms to ensure high – precision position control4. The 3 – 5 kHz current loop bandwidth ensures excellent performance of the motor during high – speed movement and precise positioning4.
• High Reliability: This drive adopts a rugged design and strict quality control measures. It has functions such as overload protection, short – circuit protection, and under – voltage protection to ensure reliable operation in harsh environments3.
• Easy to Use: The drive has a clear interface and easy – to – understand menu, which is convenient for configuration and maintenance1. The intelligent feedback device with an electronic motor nameplate eliminates the need for drive parameter setting and servo loop adjustment, allowing for plug – and – play in most applications8.
• Strong Scalability: It can be used in combination with various Kollmorgen servo motors and motion controllers to form a complete motion control system1. It also has a wide power range, allowing a single series of drives to be deployed throughout the machine8.

Application Areas and Cases

• Application Areas: The S20360 – SRS is widely used in industries such as manufacturing, robotics, packaging, and automation8. Specifically, it is used in machine tools like milling machines, lathes, grinders, and drilling machines; packaging machinery such as filling machines, sealing machines, and palletizers; printing machinery like web – fed printing machines, lithographic printing machines, and digital printing machines; robots such as six – axis robots, collaborative robots, and SCARA robots; and semiconductor manufacturing for wafer handling, lithography, and packaging1.

• Application Case: In a semiconductor manufacturing factory, the S20360 – SRS is used to control the wafer handling robot. It accurately controls the movement of the robot’s joints, enabling high – speed and precise wafer transfer between different process equipment. The high – precision position control function of the S20360 – SRS ensures that the wafer is placed in the correct position with an accuracy of ±0.001°, which greatly improves the production efficiency and product quality.

Comparison with Similar Products

Selection Recommendations

• Compatibility: Make sure that the S20360 – SRS is compatible with your servo motor and other equipment in the control system. Check the motor interface, encoder interface, and communication interface to ensure a proper match.
• Installation Environment: Consider the installation location and environment. The working temperature range of the S20360 – SRS is – 40 to 85°C, and the protection level is IP65. It should be installed in an environment that meets these requirements and is away from sources of electromagnetic interference.
• Budget: The price of the S20360 – SRS should be within your budget. However, don’t just focus on the price but also consider its performance, reliability, and long – term operating costs.

Precautions

• Safety Specifications: When installing and using the S20360 – SRS, follow the relevant safety regulations. Make sure the power is turned off before installation and maintenance to avoid electric shock.
• Maintenance Recommendations: Regularly check the connection status of the drive and the motor to ensure that there is no loose contact. Clean the dust on the drive regularly to maintain good heat dissipation performance. Check the operating parameters and status of the drive regularly to detect and handle faults in a timely manner.
