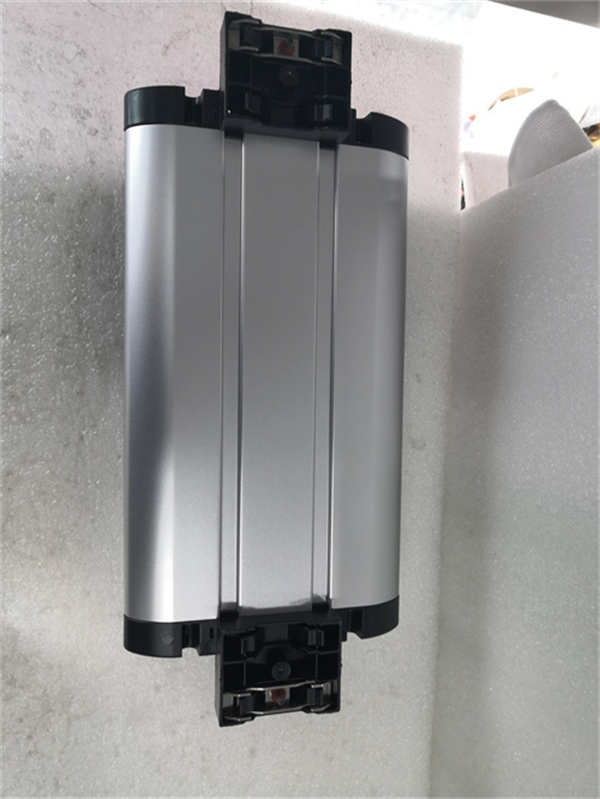

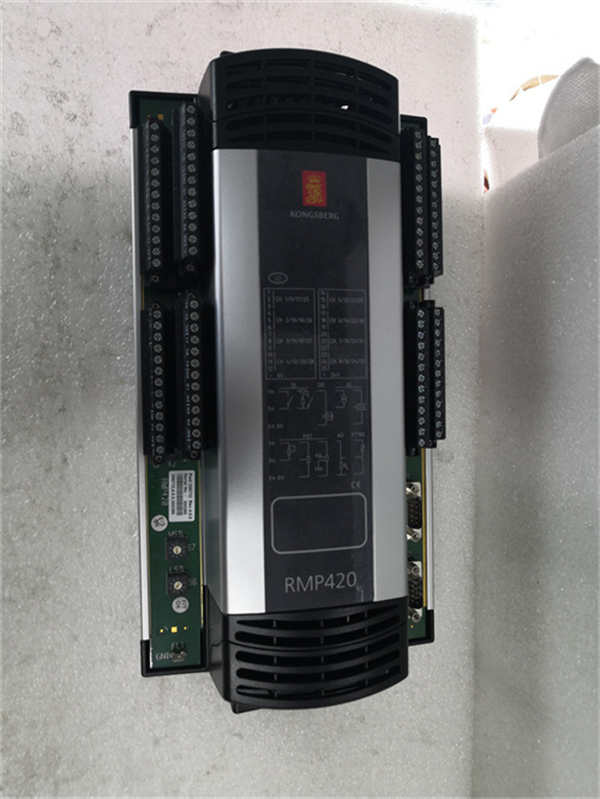

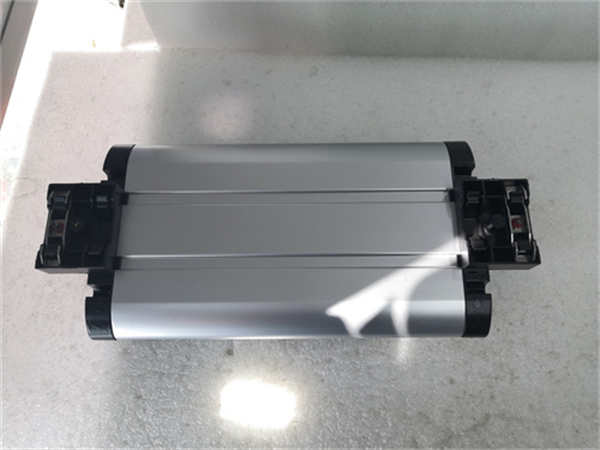

RMP420

¥5,624.00

Features:

  • Provides 32 software-configurable multi-purpose solid-state channels for analog and digital input/output (AI, AO, DI, and DO)3.
  • Supports 2- or 3-wire resistance temperature detectors (RTD) and can configure 2 channels for pulse/frequency/encoder input3.
  • Features short-circuit protection for I/O loop power output, ensuring safe operation under fault conditions3.
  • Equipped with dual remote I/O process bus interfaces for redundant communication with the host, ensuring reliability3.
  • Communication ports are electrically isolated from other module circuits, enhancing communication stability and safety3.
  • Incorporates a loop monitoring function to check each channel in real-time, ensuring data accuracy3.
Category:

Description

Series: Kongsberg RMP Series
Dimensions: 355mm x 158mm x 87mm1
Weight: Approximately 1.6kg2
Features:

  • Provides 32 software-configurable multi-purpose solid-state channels for analog and digital input/output (AI, AO, DI, and DO)3.
  • Supports 2- or 3-wire resistance temperature detectors (RTD) and can configure 2 channels for pulse/frequency/encoder input3.
  • Features short-circuit protection for I/O loop power output, ensuring safe operation under fault conditions3.
  • Equipped with dual remote I/O process bus interfaces for redundant communication with the host, ensuring reliability3.
  • Communication ports are electrically isolated from other module circuits, enhancing communication stability and safety3.
  • Incorporates a loop monitoring function to check each channel in real-time, ensuring data accuracy3.
    Functions:
  • Used primarily in alarm monitoring and data processing within comprehensive control systems3.
  • Interfaces with the main control computer (RCU) via redundant I/O buses, ensuring reliable data transmission3.
  • Handles high voltage and high current path measurements, transmitting read values to low voltage circuits3.
    Specifications:
  • Digital input loop voltage: 24 VDC ± 20%1
  • Digital output loop voltage: 24 VDC ± 20%, with a loop driver capable of 1A and short-circuit protection1
  • SPBus interface: RS-485 (multipoint) with a maximum frequency of 2 MHz1
  • Electrical isolation provided by the SPBus: 500V (optocoupler)
