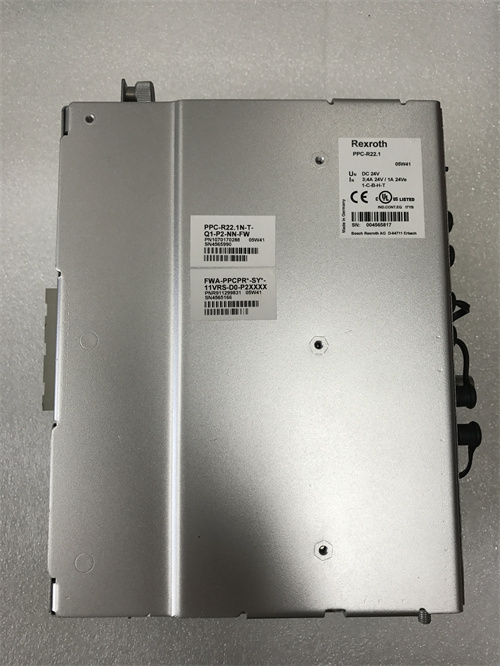

Rexroth PPC-R22.1N-T-Q1-P2-NN-FW

Description

Parameters and Specifications:

• Model: PPC-R22.1N-T-Q1-P2-NN-FW
• Brand: Rexroth
• Power Supply Voltage: 200V to 480V²
• Frequency (f): 48 … 63 Hz
• Input Voltage: 380 … 480 V
• Installation Type: Wall Mounted
• Number of Phases: 3
• Output Current (Normal Use): 15.6 A
• Output Power (Normal Use): 7.5 kW
• Net Weight: 3.3 kg¹

Series:

• PPC Series

Features:

• Versatile Application: Designed to meet the requirements of a wide range of mechanical applications¹.
• Efficient Communication: Bus-based servo drive technology provides effective reduction of communication interference and increased stability².
• Improved Motion Control: The motion trajectory planning is implemented in the drive, enabling the controller to simply send target position, speed, and acceleration information to the drive⁶.
• Reduced Complexity: The bus communication method reduces the complexity of the control system wiring².
• Cost-effective: Multiple servo drives can be connected to the motion control system through a single interface, eliminating the need for additional pulse modules and control systems².

Applications:

• PPC-R22.1N-T-Q1-P2-NN-FW is suitable for various industries, including woodworking, 3C, water cutting, and metal mold manufacturing, providing precise processing effects².

Role:

• PPC-R22.1N-T-Q1-P2-NN-FW is a servo drive that provides precision motion control for various industrial applications. It works with a controller to ensure smooth and accurate movement of the system components.
