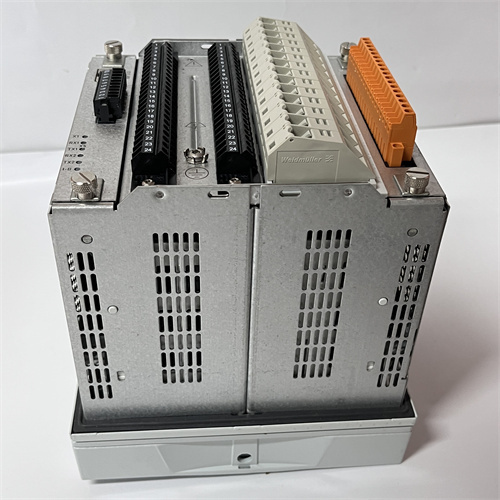

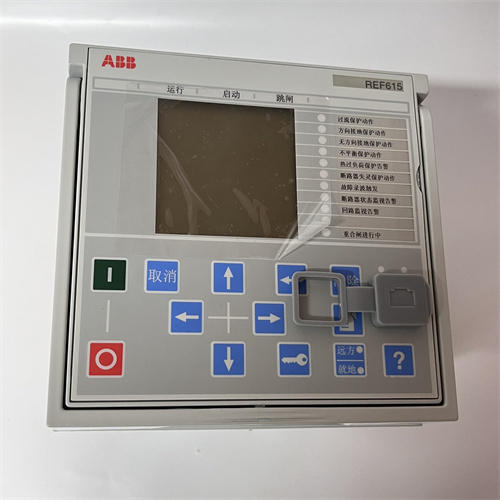

REF615 HBFEAEAGABB1BNA11E

Description

1.‌Parameters‌:

• Model: REF615
• Product Number: HBFEAEAGABB1BNA11E
• Input Voltage: 100-240V AC
• Output Voltage: 24V DC
• Current: 5A
• Frequency: 50/60Hz

2.‌Specifications‌:

• Manufacturer: ABB
• Type: High-performance protection relay
• Compliance: Based on IEC 61850 standard for interoperability and communication within substations

3.‌Dimensions & Weight‌:

• Dimensions: 100mm x 50mm x 30mm (as per some sources) or 23cm in length (additional source)
• Weight: Approximately 200g or 0.2kg

4.‌Series‌:

• Belongs to ABB’s Relion® 615 Protection and Control Unit Series

5.‌Features‌:

• Compact and easily removable design
• Supports multiple communication protocols including IEC 61850, IEC 60870-5-103, and Modbus
• Configurable for various applications, including protection of radial, ring, and mesh distribution networks
• Can be used as the main protection for overhead lines and feeders or as backup protection in independent or redundant systems
• Offers multiple standard configurations for protecting networks with ungrounded, resistively grounded, compensated grounded, and solidly grounded neutral points

6.‌Applications‌:

• Widely applied in power systems for protection, control, measurement, and monitoring
• Utilized in public substations and industrial power distribution systems
• Enhances the safety and reliability of electrical networks by detecting and mitigating faults such as overcurrents and short circuits
