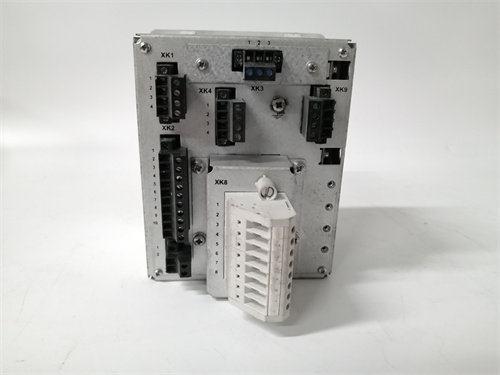

REF601

Description

series
The REF601 is a member of the ABB Relion® product family and belongs to the 605 series.
trait
Protection and control: The REF601 combines protection, monitoring and control functions with three-stage overcurrent and two-stage ground fault protection.
Inrush current stabilization function: It can prevent unnecessary tripping caused by transformer energizing.
Preconfiguration and flexibility: It is possible to preconfigure and quickly debug switchgear by setting specific application parameters within the intended application range of the relay.
Communication protocols: Support MODBUS RTU and IEC 60870-5-103 communication protocols.
Multiple application configurations: Provides different application configurations to meet different protection requirements, such as non-directional overcurrent and ground fault protection, thermal overload protection, and negative phase sequence protection.
Input/Output configuration: With four standard binary inputs and six output contacts, it can be configured for various functions, such as protective start/trip signal routing, external trip/tripping, etc.

argument
Voltage: 24V (according to one of the search results)
Current: 100-400A (again according to one of the search results)
Working environment:
Operating temperature: -10-70℃ (-40~+85℃ wide temperature optional)
Relative humidity: ≤90% (no condensation)
Storage temperature: -40 ~ 80℃
specification
Mechanical characteristics:
Overall dimension: 132mm105mm52mm
Case: IP30 protection grade, corrugated aluminum reinforced case
Installation method: 35mmDIN rail installation
Net weight: 800g (there are also claims of 2KG, but 800g is more likely to refer to net weight)
Size and weight
Size: 132mm105mm52mm
Weight: 800g (it is also said to be 2KG, but the specific should be subject to the product manual or physical)

effect
Feeder protection: REF601 is used as a feeder protection relay to protect utility substations and industrial power systems in primary and secondary distribution networks.
Short circuit and overcurrent protection: Provides protection against short circuit, overcurrent and ground faults for overhead lines and cable feeders in distribution and secondary distribution networks.
Transformer protection: Relays with surge current stabilization function can be used as the main protection device for distribution transformers.
