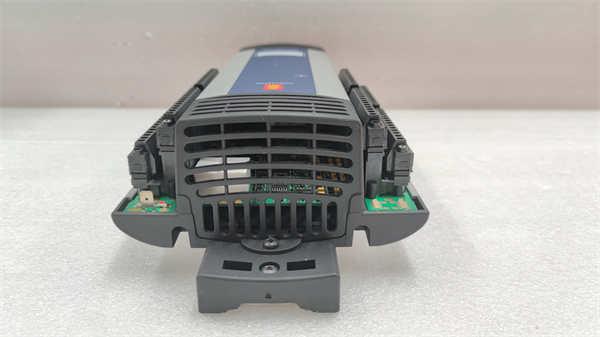

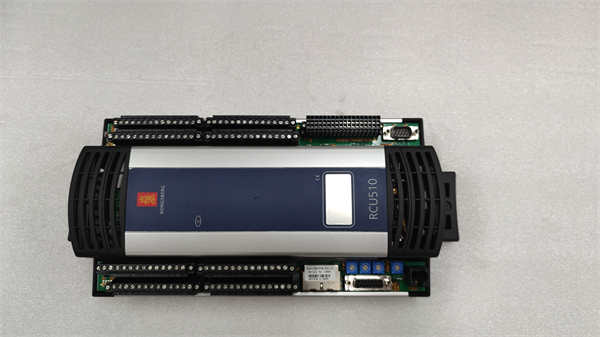

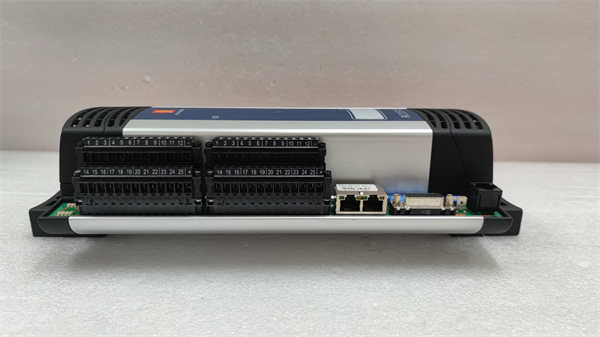

RCU510

Description

trait
High performance: The 32-bit CPU and high-speed memory ensure fast data processing and control response
Multifunctional input/output: supports multiple types of input and output channels to meet complex control needs
High reliability: complies with a number of international standards and certifications, such as IEC 61131-2, IEC 60945, IACS E10, etc
Network communication capability: Support dual Ethernet LAN interface and a variety of bus interface, easy to communicate with other devices and data exchange
Low power consumption: low design power consumption, meet the requirements of energy saving and environmental protection

argument
CPU: 32-bit, running at 400 MHz
Memory: 32 MB 64-bit, 133 MHz, SDRAM, and ECC
Grey memory: 16 MB (or 16 million, may be expressed differently)
Input/output channels:
20 AI/AO/DI/DO channels, including current, voltage, PT100 or Potentiometer input (AI), current or voltage output (AO, channels 1 to 16 only), no potential or Namur input (DI), high voltage side driver output (DO)
4 relay output channels
8 AI/AO channels, ±10V
Serial line interface: Seven universal RS-232/422/485 serial line interfaces, two of which are isolated
Network interface: Dual Ethernet LAN interface (10BASE-T/100BASE-T)
Bus interface:
Single serial process Bus (SPBus) interface
Dual CAN bus interface (adapter card required)
Dual Profibus interface (adapter card required)
Power consumption: Low power consumption, typically 20 W
specification
Brand: KONGSBERG
Model: RCU510
Type: Marine Module, input/output controller
Size and weight
Size:
Height: 355 mm
Width: 158 mm
Depth: 87 mm
Weight: 1.35kg
