Description
argument
CPU: 32-bit, running at 400 MHz
RAM: 32 MB 64-bit, 133 MHz, SDRAM and ECC
Grey memory: 16 MB (or 16 million units, but units may vary depending on presentation)
Input voltage: 24 VDC ± 20%
Power consumption: up to 20 W (including loop power)
specification

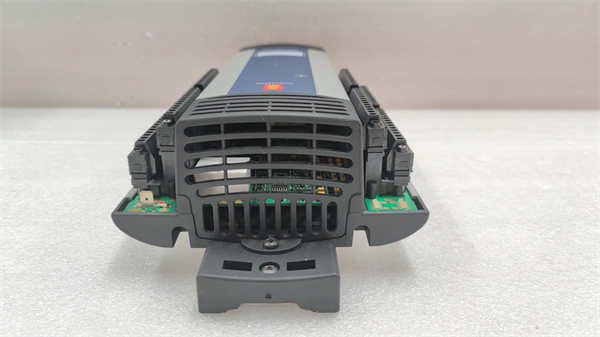

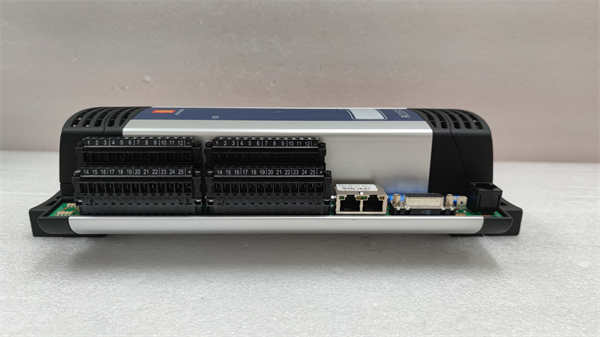

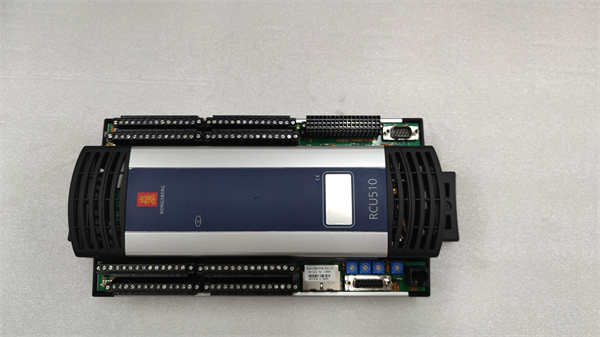

Type: Marine Marine module, Remote controller unit
Purpose: Designed for process control
Size and weight
Dimensions: Height 355 mm, width 158 mm, depth 87 mm
Weight: 1.35kg
trait
I/O channels: Contains 32 general-purpose I/O channels, of which 20 are AI/AO/DI/DO channels, 8 are AI/AO channels (±10V), and 4 relay output channels
Digital Signal Processor (DSP) : Subsystem and data filtering for controlling RIO (Remote I/O)
Serial line interface: Seven universal RS-232/422/485 serial line interfaces, two of which are isolated
Bus interface: Single serial process bus (SPBus) interface, dual CAN bus interface (adapter card required), dual Profibus interface (adapter card required)
Network interface: Dual Ethernet LAN interface (10BASE-T/100BASE-T)
Low power consumption: Typical power consumption is 20 W
Compliance with standards: The design complies with IEC 61131-2, IEC 60945, IACS E10 and other standards, and complies with relevant EU directives
Type Certification: Certified by Det norske Veritas (DnV) and the American Bureau of Shipping (ABS)
