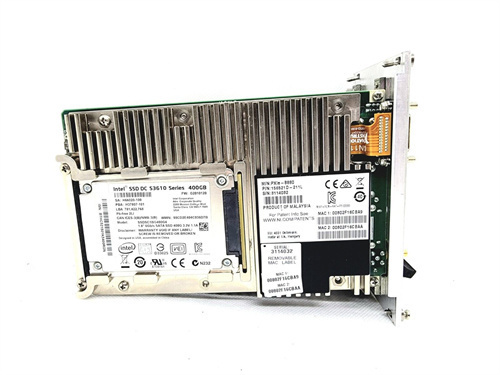

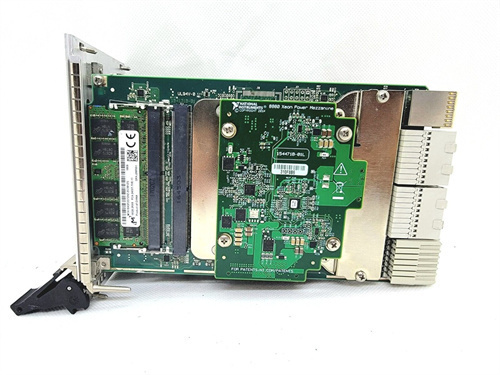

PXIE-8861

Description

Parameter Specifications

1. Power Supply: The PXIE – 8861 typically operates on a PXI Express power system. It requires a nominal voltage of +12V DC and +3.3V DC, with specific power consumption depending on the configuration and workload. Generally, it consumes around 50 – 80W under normal operating conditions.
2. Processor: It is equipped with a high – performance Intel Core – based processor. For example, it may feature an Intel Core i7 processor with multiple cores and high clock speeds, providing powerful computing capabilities for data processing and analysis.
3. Memory: It has a large amount of memory, usually 16GB or 32GB of DDR4 RAM. This ample memory allows for smooth running of complex applications and handling of large – scale data.
4. Storage: It comes with built – in storage options, such as a solid – state drive (SSD). The SSD capacity can range from 256GB to 1TB, providing fast data access and reliable data storage.
5. Communication Interfaces: It offers a variety of communication interfaces. There are multiple PXI Express slots for connecting other PXI – based modules, enabling system expansion. It also has Ethernet ports (Gigabit Ethernet), USB ports (USB 3.0 and USB 2.0), and serial ports (RS – 232) for external device connectivity.

Applications

1. Automated Test Systems: In the electronics manufacturing industry, the PXIE – 8861 can be used as the central processing unit in automated test systems. It can control test instruments, acquire test data, and perform data analysis to ensure the quality of electronic products.
2. Data Acquisition and Monitoring: In industrial and scientific research, it can be used for data acquisition from various sensors, such as temperature sensors, pressure sensors, and strain gauges. It then monitors and analyzes the data in real – time.
3. Embedded Control Applications: In aerospace and defense applications, it can serve as an embedded controller for controlling complex systems, such as unmanned aerial vehicles (UAVs) or robotic systems.

Weight and Dimensions

1. Weight: Approximately 3 – 4 kg, which is relatively light considering its high – performance capabilities.
2. Dimensions: It is designed to fit into a standard PXI Express chassis. The dimensions are typically in line with PXI form factors, with a width of 8HP (Horizontal Pitch) and a height and depth that are compatible with the PXI chassis.

Features

1. High – performance Computing: The powerful processor and large memory enable high – speed data processing and the running of complex algorithms, making it suitable for demanding applications.
2. Modular Design: The PXI Express form factor allows for easy integration with other PXI modules, providing a flexible and scalable solution for different application requirements.
3. Rich Connectivity: The multiple communication interfaces offer extensive connectivity options, facilitating the connection of various external devices and systems.

Stability and Reliability

1. Robust Construction: Built with high – quality components and a durable enclosure, it can withstand normal vibrations, shocks, and temperature variations in industrial and laboratory environments.
2. Long – term Testing: Through extensive long – term testing, it has been proven to have a stable performance over a long service life. The use of high – quality SSDs also ensures reliable data storage.
3. Redundancy Options: Some configurations may support redundant power supplies and data storage, enhancing system reliability and fault – tolerance.

Practical Case
