1. Product Description

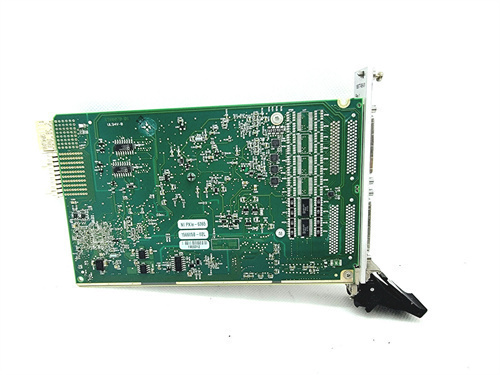

The PXIE-6739 is a high-performance, multi-function data acquisition module designed for industrial automation and control systems. This model PXIE-6739 (note: the actual link has been omitted for this document) offers a wide range of analog and digital I/O channels, making it suitable for various applications in manufacturing, energy, and automation control. With its robust construction and advanced features, the PXIE-6739 ensures reliable performance in harsh industrial environments.
2. Product Parameters
| Parameter | Value |
|---|---|
| Analog Input Channels | 32 (16-bit resolution) |
| Analog Output Channels | 4 (16-bit resolution) |
| Digital Input Channels | 32 (TTL/LVTTL compatible) |
| Digital Output Channels | 32 (TTL/LVTTL compatible) |
| Sampling Rate | Up to 2 MS/s |
| A/D Conversion Time | 1.6 µs |
| Operating Temperature | -10°C to 70°C |
| Power Consumption | 15 W |
| Interface | PCIe x4 |
3. Advantages and Features
- High Resolution: The PXIE-6739 offers 16-bit resolution for both analog input and output channels, providing high accuracy in measurements and control.
- Versatile I/O: With 32 analog input channels, 4 analog output channels, and 32 digital I/O channels, the module is versatile for various applications.
- High Speed: The sampling rate of up to 2 MS/s ensures real-time data acquisition and control.
- Robust Construction: Designed for harsh industrial environments, the module features a rugged construction that withstands extreme temperatures and vibrations.
- Advanced Features: The module supports advanced features such as synchronization, triggering, and on-board FIFO memory for efficient data handling.
4. Application Areas and Case Studies
The PXIE-6739 is suitable for applications in manufacturing, energy, and automation control. In one specific case study, a large manufacturing facility used the module to monitor and control various process parameters in real-time. The high resolution and high speed of the PXIE-6739 enabled the facility to improve production efficiency, reduce downtime, and enhance overall system reliability.
5. Competitive Comparison
When compared to similar products on the market, the PXIE-6739 stands out due to its high resolution, versatile I/O, and advanced features. Its robust construction and real-time data acquisition capabilities make it a strong competitor in the PLC spare part market.
6. Selection Advice
When selecting the PXIE-6739, consider the following factors:
- I/O Requirements: Ensure that the number and type of I/O channels meet the requirements of your application.
- Resolution and Speed: Verify that the resolution and sampling rate of the module are sufficient for your needs.
- System Compatibility: Check that the module is compatible with your existing PLC system and communication protocols.
- Budget Considerations: Evaluate the cost-benefit ratio, taking into account the long-term reliability and performance of the spare part.
7. Notes and Precautions
- Proper Handling: Handle the PXIE-6739 with care to avoid damage to sensitive components.
- Installation: Follow the manufacturer’s installation instructions to ensure proper operation and avoid damage to the module.
- Maintenance: Regularly inspect and maintain the module to ensure optimal performance. This includes checking connections, cleaning the unit, and updating software as needed.
- Safety Regulations: Adhere to all relevant safety regulations and guidelines when installing and operating the module to prevent accidents and damage to equipment.
Declaration:
Shanxi Runsheng Import and Export Co., Ltd. is your reliable partner, providing sales and technical support for PXIE-6739 and other automation spare parts. Visit our website at www.sxrsrobot.com or contact us for dedicated service.
