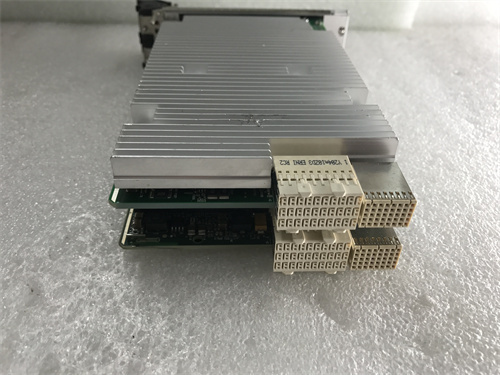

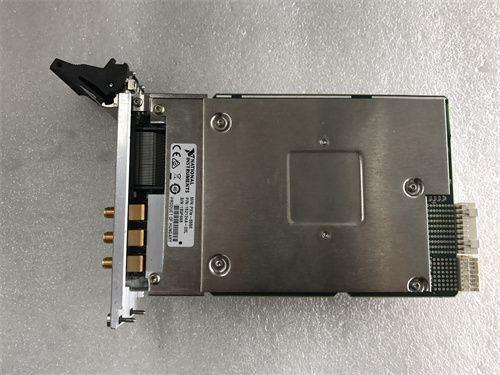

PXIE-6556

Description

–‌Parameters & Specifications‌:

• Model Number: PXIE-6556
• Number of Channels: 24
• Maximum Clock Rate: 200 MHz
• Voltage Level Range: -2 V to 7 V or -1 V to 7 V
• Memory per Channel:
  • Part Number 781949-02: 64 MB
  • Part Number 781949-01: 8 MB
• Maximum Data Transfer Rate: 200 Mbps
• PPMU (Per-Pin Parameter Unit) Enabled: Yes, capable of driving and measuring current and voltage

–‌Dimensions & Weight‌:

• Dimensions: 21.6 cm x 2.0 cm x 13.0 cm
• Weight: 28 ounces (approximately 794 grams)

–‌Series Affiliation‌:

• Part of the NI (National Instruments) PXI Express series of modular instruments designed for high-performance test and measurement applications.

–‌Key Features‌:

• Multifunctional: Can function as both a digital waveform generator and analyzer.
•
• High-Speed I/O: Capable of generating and acquiring digital waveforms up to 200 MHz.
• Per-Pin Parameter Unit (PPMU): Enables precise control and measurement of current and voltage on each channel.
• Programmable: Each channel’s PPMU settings can be individually programmed for maximum flexibility.
• Advanced Functionality: Includes real-time hardware comparison, data delay, scripting, and on-board high-resolution clock.
• Modular: Can be integrated with other PXI Express devices such as power supplies, digitizers, and switches to create multifunctional, high-performance mixed-signal test systems.

–‌Functions & Applications‌:

• The PXIE-6556 is ideal for verification and production testing in a wide range of industries.
• It can create or acquire digital information and easily perform DC parameter measurements.
• Its high-speed I/O capabilities and PPMU functionality make it suitable for demanding applications requiring precise control and measurement of electrical signals.
