Description
argument

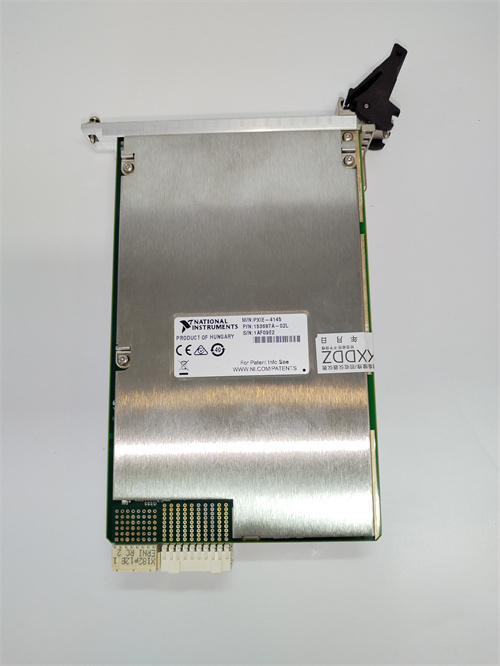

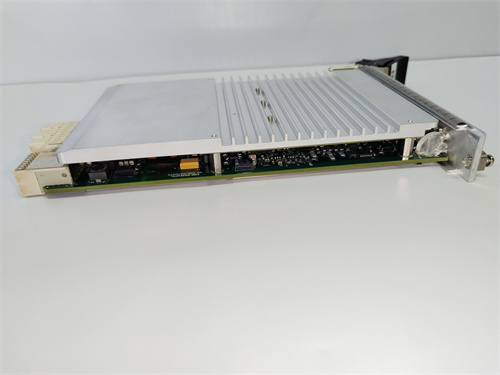

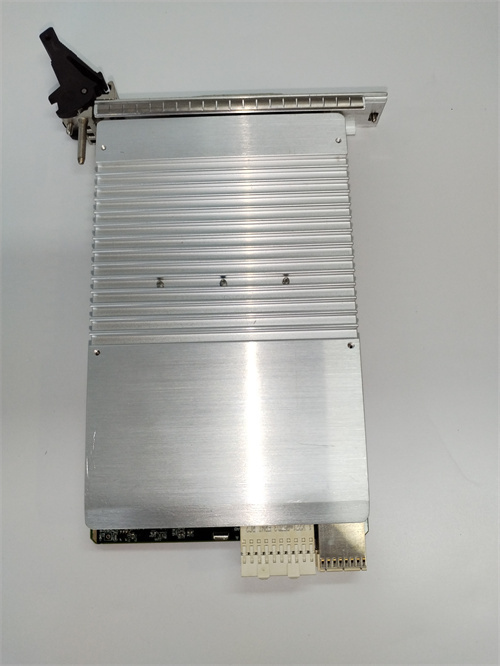

Number of channels: The PXIE-4145 is a multi-channel data collector with 16 channels.
Resolution: Each channel supports 24-bit resolution sampling.
Sampling rate: Up to 100 MS/s sampling rate is available.
Input range: ±10V.
Input impedance: 100kΩ.
Trigger mode: Software trigger and hardware trigger are supported.
Data transmission mode: through DMA interface.
specification
Input voltage range: 12-48VDC.
Output voltage: 5VDC.
Maximum output current: 10A.
Efficiency: greater than 90%.
Interface: PXI Express.
Dimensions: 170mm x 105mm x 32mm.
Weight: about 120g (or 0.5 kg, depending on the source).
Operating temperature range: -20°C to +50°C.
Storage temperature range: -40°C to +70°C.
trait
Multi-channel data acquisition: Support the simultaneous acquisition of multiple analog signals, with excellent data acquisition and processing capabilities.
High accuracy: Each channel provides sampling with 24-bit resolution to ensure measurement accuracy.
High-speed sampling: Sampling rates up to 100 MS/s are suitable for rapidly changing signal measurements.
Data security: Supports a variety of data encryption protocols to ensure the security and integrity of data during collection and transmission.
Flexibility and compatibility: Integration of multiple communication interfaces such as Fieldbus, CANopen, Profibus and Ethercat, compatible with brushless motors, torque motors and linear motors.
Scalability: As a high-performance, scalable real-time embedded controller, it can adapt to different industrial automation and test and measurement needs.
Rich I/O interfaces: Sensors, actuators and other devices can be easily connected to achieve complex automated control and data acquisition tasks.
Safety and stability: Suitable for industrial automation and control systems with high safety and stability requirements.
