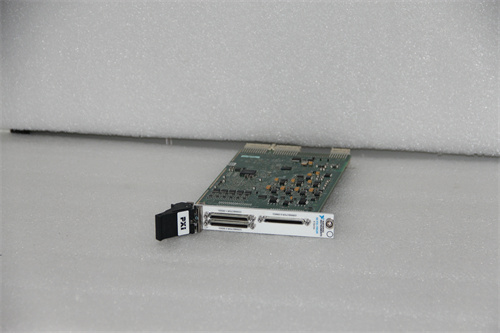

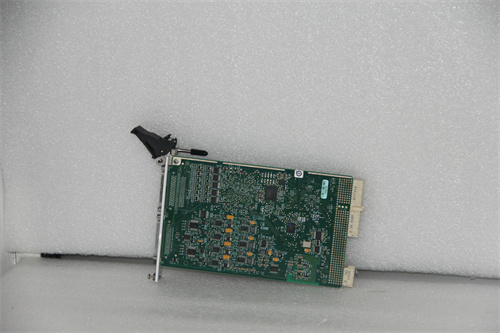

PXI-7852R

Description

Parameters and Specifications:

Brand: National Instruments (NI)
Model: PXI-7852R
Type: Multifunction Reconfigurable I/O Module
FPGA Chip: Virtex-5 LX50 FPGA for programmable logic and high-speed data processing
Analog Inputs: 8 channels with 750 kHz independent sampling rate and 16-bit resolution
Analog Outputs: 8 channels with 1 MHz independent update rate and 16-bit resolution
Digital Lines: 96 lines configurable as inputs, outputs, timers, or custom logic
Direct Memory Access (DMA) Channels: 3 channels for high-speed data transfer
Operating System Compatibility: Windows XP/2000, LabVIEW Real-Time

Dimensions and Weight:

Dimensions: 13.4 × 5.0 inches
Weight: 2KG

Features:

Programmable FPGA: The Virtex-5 LX50 FPGA allows for custom programming using LabVIEW FPGA Module
High-Speed I/O: Supports high-speed analog input/output and digital I/O operations
Configurable Triggering and Timing: User-configurable triggering and timing options for precise data acquisition and control
Flexibility: The module can be used with LabVIEW graphical programming software for easy configuration and customization
Parallel Processing: The FPGA enables parallel processing of multiple tasks, improving throughput and determinism
