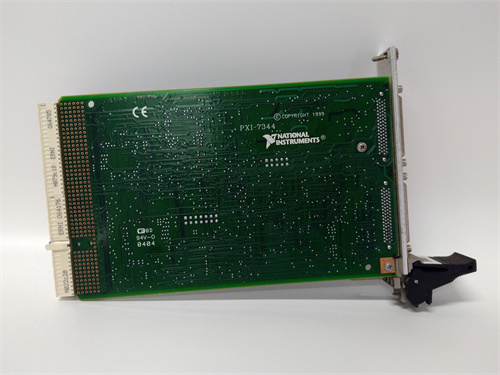

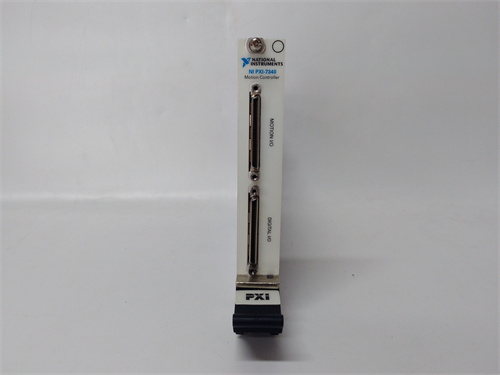

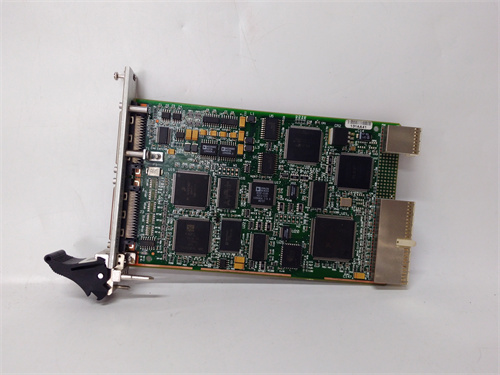

PXI-7344

Description

argument
Number of axes: 4 axes
Position accuracy: up to 1 micron per axis
Speed accuracy: Speed accuracy up to 0.01%
Maximum speed: up to 60 rpm per shaft
Rated current: 3 A/ shaft
Peak current: 6 A/ axis
Power supply voltage: 24 VDC
Protection level: IP66
Operating temperature range: -20°C to +65°C (-4°F to +149°F)
specification
Type: Servo controller
Manufacturer: National Instruments (NI)
Series: PXI
Number of channels:
Number of analog output channels: 4 channels (in some descriptions)
Number of servo shaft channels: Multiple independent servo shaft channels (in other descriptions)
Size and weight
Size: 3U PXI module
Weight: 0.7kg
trait
High-precision control: With high-precision motion control ability, it can achieve accurate control of the position, speed and acceleration of the servo motor.
Multi-axis control: Support multi-axis servo control, can control multiple servo motors or actuators at the same time.
Closed-loop control: real-time adjustment and stabilization of the control system through feedback signals to ensure the stability and accuracy of the control system.
Easy to use: Provide LabVIEW and C/C++ and other programming languages support, easy to develop application software.
Powerful functions: Support a variety of motion control functions, such as point-to-point positioning, trajectory tracking, speed control, etc.
Communication interface: Connect with computer or upper computer through various communication interfaces, such as PCIe, PXIe, etc., to realize data exchange and communication with other controllers, sensors and external devices.
effect
Industrial automation: Suitable for the motion control needs of various industrial automation applications, such as manufacturing, energy, machinery and equipment industries.
Scientific research: Also suitable for scientific research areas requiring precise motion control.
Data acquisition and testing: In some cases, it can also be used for test, measurement and control applications with accurate analog signal output.
