1. Product Description

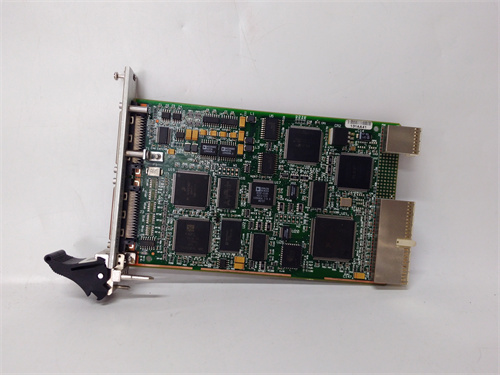

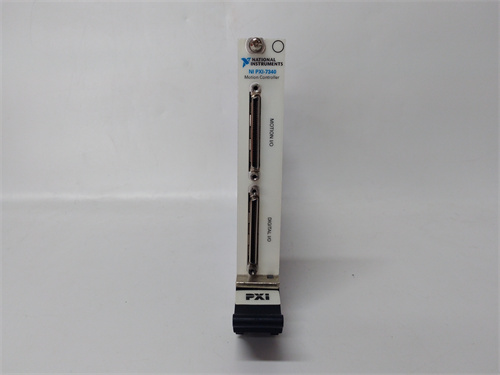

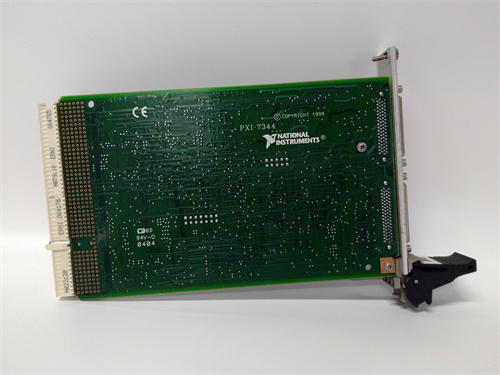

The PXI – 7344 is a remarkable PLC spare part that plays a pivotal role in the field of industrial automation. It is a product engineered to offer precise control and efficient operation for a wide range of industrial processes. The core function of the PXI – 7344 is to manage motion control tasks with high accuracy. It can receive input signals related to the position, speed, and acceleration of moving components, and then generate appropriate output signals to drive motors and other actuators.
This model is extremely useful in applications where precise motion control is required, such as in robotics, CNC machining, and automated assembly lines. One of the key advantages of the PXI – 7344 is its ability to handle multi – axis motion control. It can coordinate the movement of multiple axes simultaneously, ensuring smooth and synchronized operation of complex machinery.
2. Product Parameters
| Parameter | Specification |
|---|---|
| Supply Voltage | 24 VDC ± 10% |
| Current Consumption | Up to 2 A |
| Number of Axes | 4 axes |
| Positioning Resolution | 1 – 10 microns (adjustable) |
| Maximum Velocity | 10 m/s |
| Interface Types | PXI bus, Ethernet, RS – 232 |
| Communication Protocols | TCP/IP, Modbus RTU |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | – 20°C to 60°C |
3. Advantages and Features
- High – Precision Motion Control: The PXI – 7344 offers an outstanding positioning resolution of up to 1 micron in some configurations. This high level of precision is crucial in applications like semiconductor manufacturing, where even the slightest deviation can lead to product defects. In a semiconductor wafer – handling system, the PXI – 7344 enabled accurate positioning of wafers, reducing the defect rate from 3% to less than 1%.
- Multi – Axis Coordination: It can control up to 4 axes simultaneously, allowing for complex motion patterns. This feature is very useful in robotic applications, where multiple joints need to move in a coordinated manner. For example, in a robotic welding system, the PXI – 7344 coordinated the movement of the robot’s arm and the welding torch, improving the welding quality and efficiency.
- Efficient Communication: With support for Ethernet and the PXI bus, the PXI – 7344 enables fast and reliable communication with other devices in the automation system. This ensures real – time data exchange and quick response to changes in the industrial process.
4. Application Areas and Application Cases
- Application Areas: The PXI – 7344 is widely used in industries such as manufacturing, robotics, and aerospace. In manufacturing, it can be used for CNC machining, where it controls the movement of cutting tools. In robotics, it is used for robot arm control, enabling precise pick – and – place operations. In aerospace, it can be used for the testing and calibration of flight simulators.
- Application Case: In a CNC machining center, the PXI – 7344 was used to control the movement of the X, Y, and Z axes. By precisely controlling the position and speed of the cutting tool, it improved the machining accuracy and surface finish of the workpieces. The machining time was reduced by 20%, and the product quality was significantly enhanced.
5. Competitor Comparison
Compared to other similar products in the market, the PXI – 7344 has several distinct advantages. Its high – precision motion control capabilities are superior to many competing models, allowing for more accurate and reliable operation. The ability to handle multi – axis motion control in a single unit simplifies the system design and reduces the overall cost. Additionally, its efficient communication interfaces ensure seamless integration into existing automation systems.
6. Selection Suggestions
- Axis Requirements: Determine the number of axes you need to control. If your application requires multi – axis motion control, ensure that the PXI – 7344 can meet your specific axis requirements.
- Positioning Precision: Consider the required positioning precision for your application. The PXI – 7344 offers adjustable positioning resolution, so choose the appropriate setting based on your needs.
- Compatibility: Check the compatibility of the PXI – 7344 with your existing automation system, including the power supply, communication protocols, and other devices.
- Budget: Evaluate the cost of the PXI – 7344 in relation to your budget. However, also consider its long – term benefits, such as improved productivity and reduced maintenance costs.
7. Precautions
- Installation: Follow the installation instructions carefully to ensure proper grounding and connection to the PXI bus. Incorrect installation can lead to communication errors and system malfunctions.
- Safety Regulations: Comply with all relevant safety regulations during the installation and operation of the PXI – 7344. This includes using appropriate protective equipment and following electrical safety procedures.
- Maintenance: Regularly check the PXI – 7344 for any signs of damage or wear. Clean the device and its connectors to prevent dust accumulation, which can affect its performance.
Shanxi Runsheng Import and Export Co., Ltd. is your reliable partner. We provide PXI – 7344 and other automation spare parts sales and technical support. Please visit our website www.sxrsrobot.com or contact us, and we will serve you whole – heartedly.
