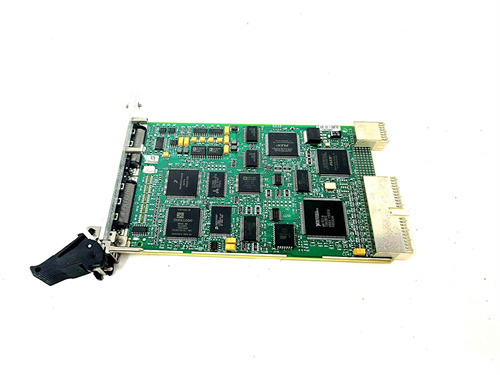

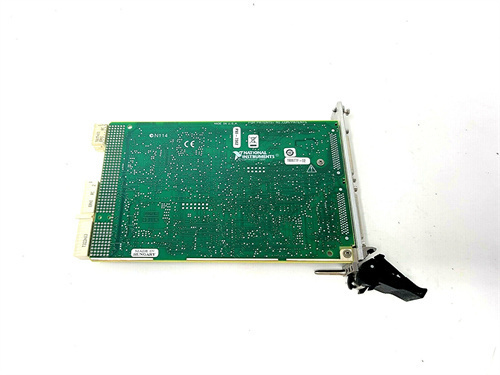

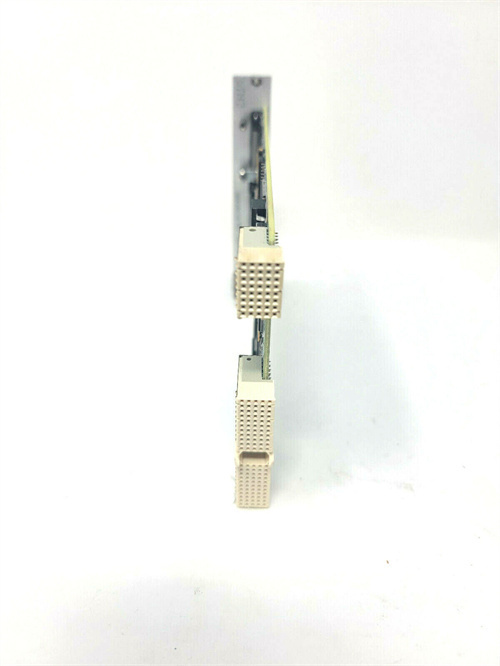

PXI-7340

Description

argument
Number of axes: 4 axes
Position accuracy: 1μm
Speed: 10 m/s
Acceleration: 100 m/s²
Slot: PXIe
Operating voltage: 24Vdc/120Vac (according to merchant information)
Output frequency: 50-60 (according to merchant information)
specification
Compatibility: LabVIEW, LabWindows/CVI, MATLAB, C/C++
System environment: room temperature (according to merchant information)
System capability: Intelligent, operating system PLC system (according to merchant information)
Size and weight
Dimensions: 100 mm x 160 mm x 21 mm
Weight: 310 grams

series
Series: NI PXI motion control series
trait
Dual-processor architecture: Combines 32-bit central processing unit (CPU), digital signal processor (DSP) and custom FPGAs for advanced multi-tasking, synchronous and coordinated motion control under constant conditions.
Fifo bus interface: Provides fast communication and optimizes framework execution.
Digital signal processor: Used for all closed-loop control, including position tracking, PID closed-loop control calculation, and motion trajectory generation.
Embedded firmware: Depends on the installed RTOS components to provide ideal framework execution in different motion applications.
Task organization: The order in which tasks are executed depends on task requirements, moving frame conditions, I/O or other frame events, and the real-time clock.
effect
Motion control: The PXI-7340 motion controller is mainly used in industrial automation and test systems to achieve precise synchronization and coordinated motion control of multiple axes.
Real-time performance: Through its advanced processor architecture and bus interface, it provides high-speed and accurate motion control performance to meet the application scenarios with high real-time requirements.
Integration and compatibility: Compatible with NI’s LabVIEW, LabWindows/CVI and other software development environments, convenient for users to carry out system integration and custom development.
