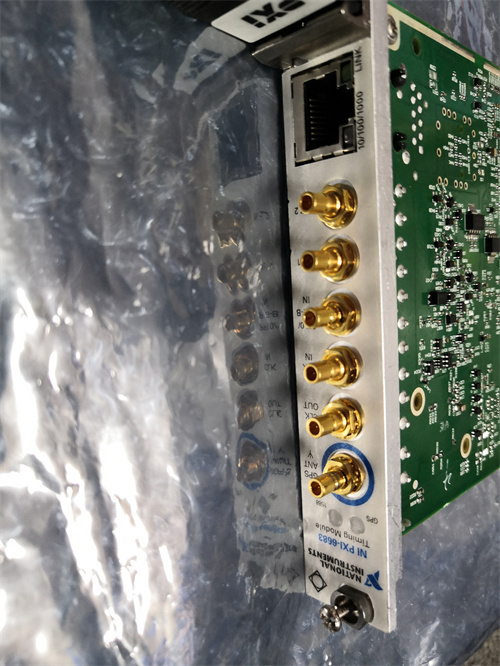

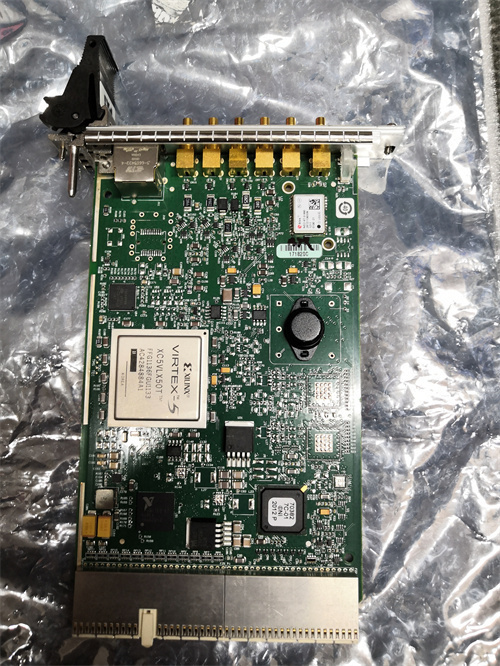

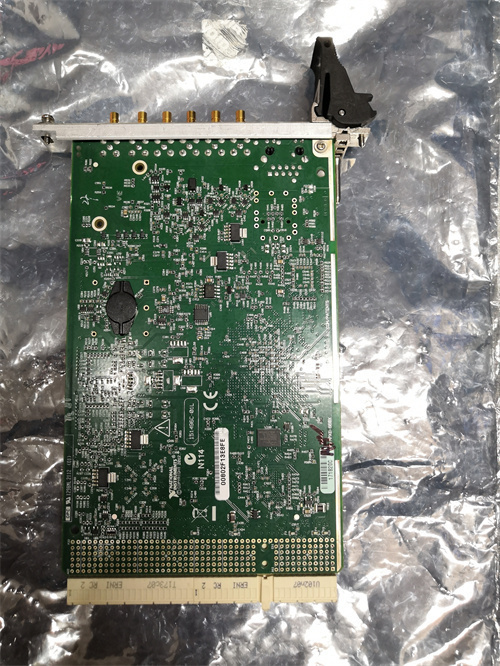

PXI-6683

Description

1.‌Parameters‌:

• Model: PXI-6683
• Brand: National Instruments (NI)
• Bus Type: PXI/PXI Express
• Clock Sources: GPS, IEEE 1588, IRIG-B, PPS12

2.‌Specifications‌:

• Clock Type: Onboard Temperature-Compensated Crystal Oscillator (TCXO) with 1 ppm accuracy12
• Synchronization Capabilities: Supports synchronization of PXI and PXI Express systems using GPS, IEEE 1588, IRIG-B, and PPS12
• Timing Functions: Generates events and clock signals at synchronized time points, time-stamps input events based on synchronized system time12

3.‌Dimensions & Weight‌:

• Exact dimensions and weight are not specified in the available information. However, it is a PXI module, so it adheres to the standard PXI form factor and weight limitations.

4.‌Series‌:

• Part of NI’s PXI timing and synchronization module series.

5.‌Features‌:

• Advanced Synchronization: Uses GPS, IEEE 1588, IRIG-B, and PPS for precise timing and synchronization12
• Long-Term Stability: TCXO can be disciplined by GPS, IEEE 1588, and IRIG-B for long-term stability12
• Multi-Device Synchronization: Routes clock signals and triggers with low skew within PXI chassis or between multiple chassis12
• Trigger Routing: Supports PXI trigger bus, star triggers, and system reference clock functions for advanced multi-device synchronization4

6.‌Applications‌:

• Used in test and measurement systems requiring high-precision timing and synchronization12
• Enhances measurement accuracy and enables complex trigger schemes4
• Suitable for applications requiring a large number of synchronized channels
