Description
Parameters and specifications
Number of channels: 16 single-ended or 8 differential.
Resolution: 16 bits.
Maximum sampling rate: 10 MS/s.
Input voltage range: ±10 V, ±5 V, ±2 V, ±1 V.
Converter type: Single channel unipolar or differential.
Connection interface: PXI bus or PCI bus.
series

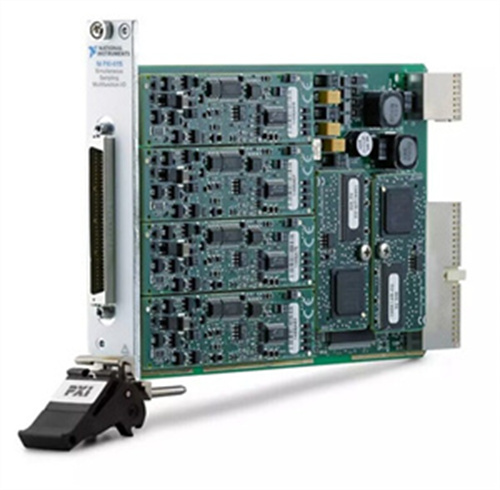

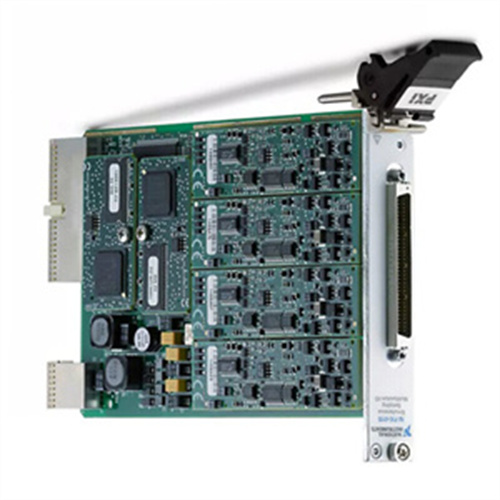

is a series of data acquisition cards based on the PCI Extensions for Instrumentation (PXI) platform of National Instruments (NI).
trait
High-speed acquisition and measurement: Thanks to its high sampling rate and 16-bit resolution, various types of signals can be accurately measured and acquired.
Flexible channel configuration: 16 single-ended or 8 differential channels can be configured as required.
Stability and accuracy: Low noise and high stability ensure accurate measurements.
Flexible input range: Different input voltage ranges can be selected to suit different application requirements.
Multiple connection interfaces: PXI bus or PCI bus connection interface can be selected to adapt to different system architectures and requirements.
Multiple capabilities: A combination of analog I/O, digital I/O, counter/timer, and trigger functions in a single PXI module.
effect
Data Acquisition: The can be used in a variety of applications requiring data acquisition, such as laboratory research, design validation testing and industrial applications such as manufacturing testing.
Measurement and monitoring: It can be used to measure and collect signals such as voltage, current, temperature and pressure in automotive electrical systems, as well as other applications that require accurate measurement.
Suitable for a variety of fields, including but not limited to automotive engineering, radar, sonar and ultrasound.
