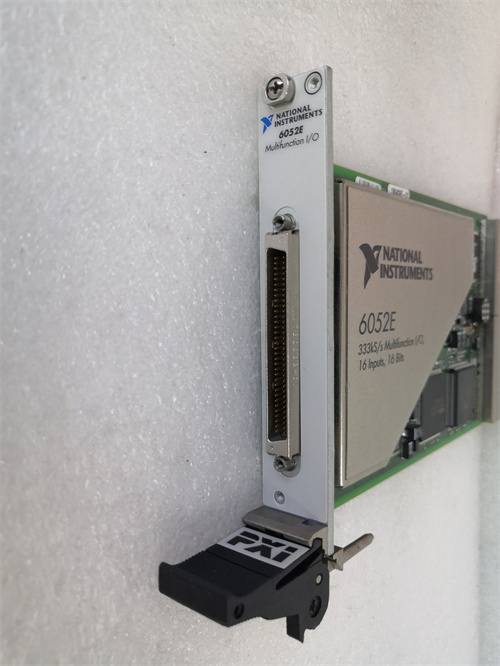

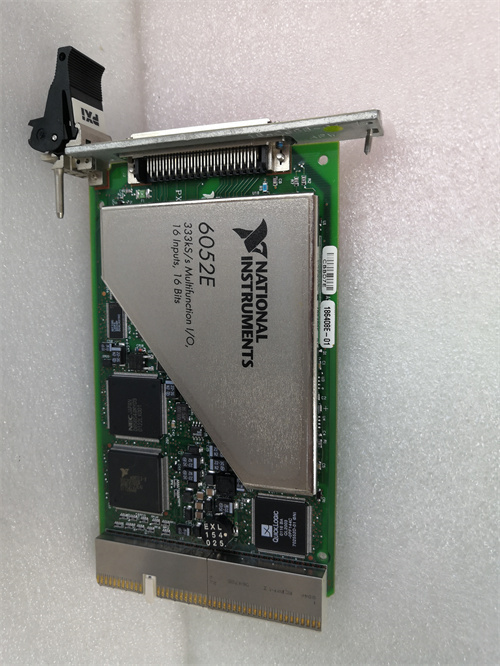

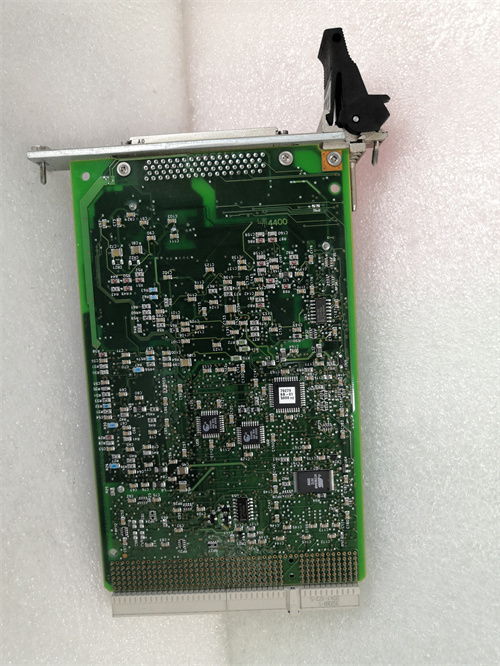

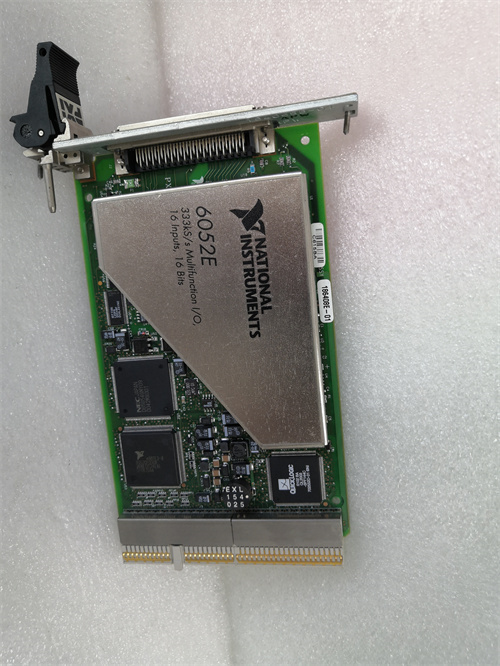

PXI-6052E

Description

Parameters and Specifications:

Resolution: The NI PXI-6052E provides a 16-bit resolution, which ensures accurate data acquisition.
Sampling Rate: It offers a maximum sampling rate of up to 1.25 MS/s per channel. However, please note that depending on the configuration and the number of channels used, the sampling rate may vary.
Channels: This device has 16 analog inputs, 2 analog outputs, and 24 digital I/O lines. Some references also mention 8 analog inputs and 8 DIO channels, which might refer to different configurations or model variants.
Input Range: The analog input range is ±10v.
Input and Output Impedance: The input impedance is 1mohm with 25pf, and the output impedance is 50 ohms.
Counters and Timers: It is equipped with two counters/timers.
Compatibility: The NI PXI-6052E is compatible with various software development environments (ADE) such as LabVIEW, Visual Basic, C#, and C/C++.

Dimensions and Weight:

Exact dimensions and weight for the NI PXI-6052E are not provided in the available references. However, since it is a PXI module, it is likely to conform to the standard dimensions of a PXI card, which are typically defined by the PXI specification.

Features:

Modular Design: The modular design allows for easy integration into existing test and measurement systems.
High Performance: With its high resolution and sampling rate, it can capture and process data accurately.
Flexibility: The NI PXI-6052E offers flexibility in terms of configuring the analog and digital channels based on application needs.
Extensive Connectivity: Multiple analog and digital channels, along with counters and timers, provide extensive connectivity options for various measurement tasks.
