Description
Parameters and specifications :

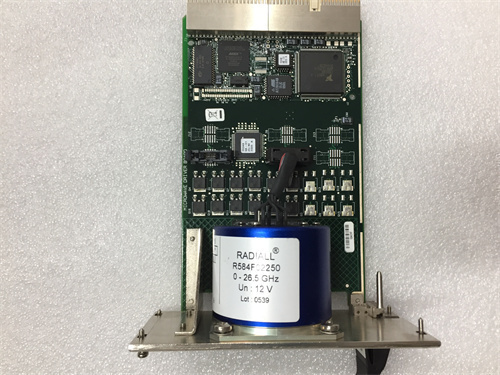

Model: PXI-2597 is a high-performance PXI RF multiplexer switch module manufactured by NI (National Instruments Corporation).
Frequency range: Supports signal processing up to 26.5 GHz
Impedance: 50Ω, suitable for a variety of RF signal application scenarios.
Configuration: 6×1 (SP6T) terminates the multiplexer to provide flexible signal routing options
Features :
Internal termination design helps prevent high power reflections from open channels within the module
On-board relay counting and tracking function to predict relay life and reduce unplanned system downtime
High performance, high precision, suitable for processing high frequency RF signals.
function :
Suitable for transmitting higher order harmonics from PXI RF signal upconverter or routing multiple signal sources to PXI RF signal downconverter module 1.
As a key component in wireless communication, radar systems, electronic testing and other fields, it provides signal routing and switching functions to ensure efficient system operation and test accuracy.
